Fixed Type Rockbreaker Boom System， Meet diversified industrial needs
With the rapid development of industry, the demand for mechanical equipment is becoming increasingly diversified. YZH Fixed Type Rockbreaker Boom System， With its rich functionality and flexible configuration, it can meet the diverse needs of various industrial scenarios.
Main parameters of BB450 Fixed Type Rockbreaker Boom System：
| Model No. | BB450 | |
| Boom weight(without hammer) | kg | 3296 |
| Max horizontal working radius | mm | 7000 |
| Max.vertical working radius | mm | 4950 |
| Min.vertical working radius | mm | 2040 |
| Max.Height | mm | 3780 |
There are multiple types of Fixed Type Rockbreaker Boom Systems to choose from, which can be divided into straight arm Fixed Type Rockbreaker Boom Systems and curved arm Fixed Type Rockbreaker Boom Systems based on the shape of the robotic arm; According to the rotation angle, it can be divided into 170 ° rotation Fixed Type Rockbreaker Boom System and 360 ° rotation Fixed Type Rockbreaker Boom System. Different types of Fixed Type Rockbreaker Boom Systems are suitable for different working environments and job requirements, and enterprises can choose according to their actual situation. The BB450 model introduced today is a 170 degree rotating straight arm Fixed Type Rockbreaker Boom System
In terms of control methods, it provides multiple options such as cabin joystick control, wireless joystick control, fiber optic 5G remote control, and can also be used in combination with multiple control methods. The cab handle is suitable for close range operation, making it convenient for operators to observe the real-time operation of the equipment; The wireless controller has high flexibility in operation, and the operator can freely move and operate within a certain range; Fiber optic 5G remote control enables remote real-time control, allowing for precise control of equipment even when the operator is not present, making it particularly suitable for hazardous environments or remote work scenarios. Customers can choose according to their needs

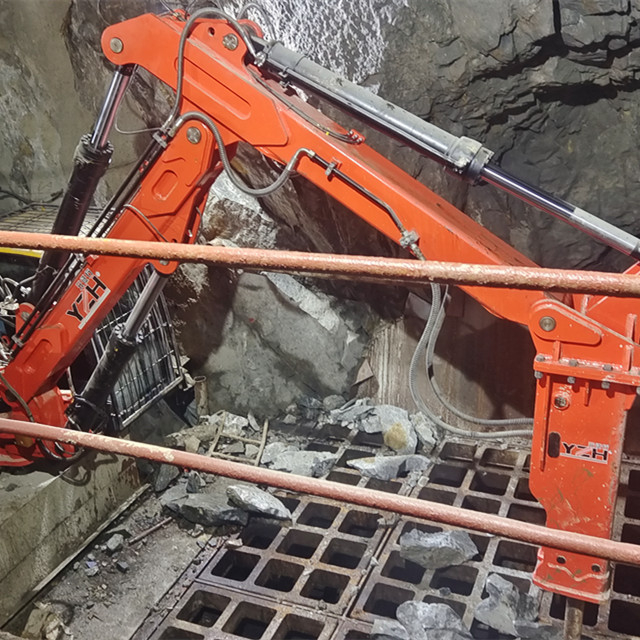

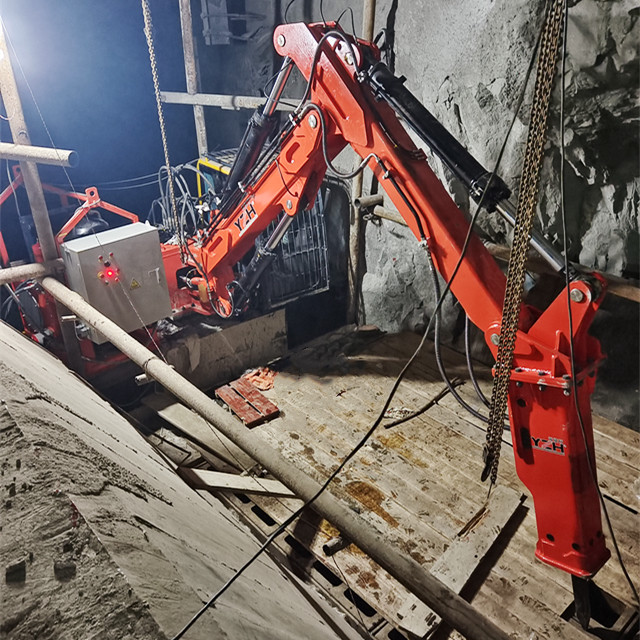

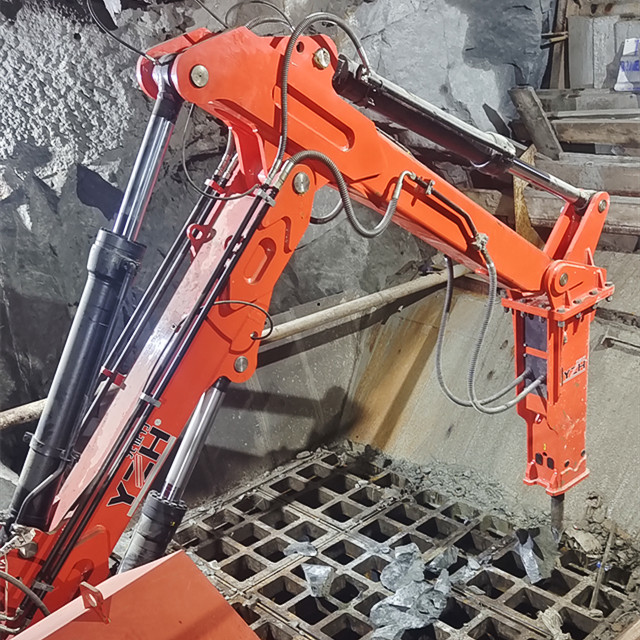

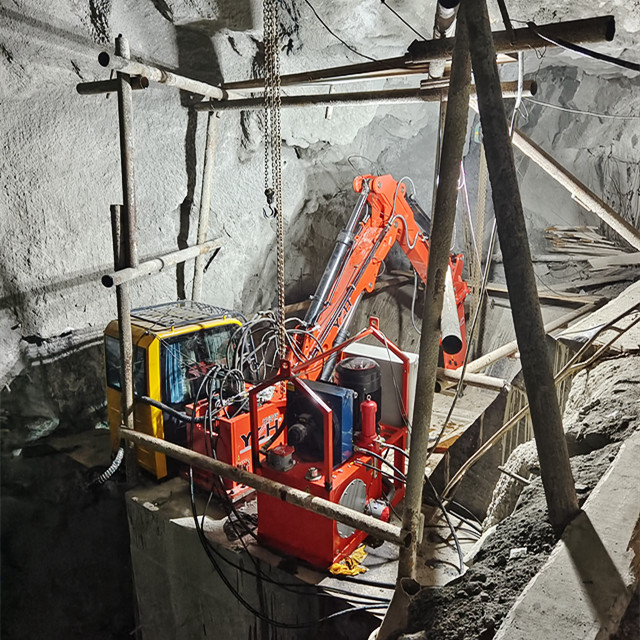

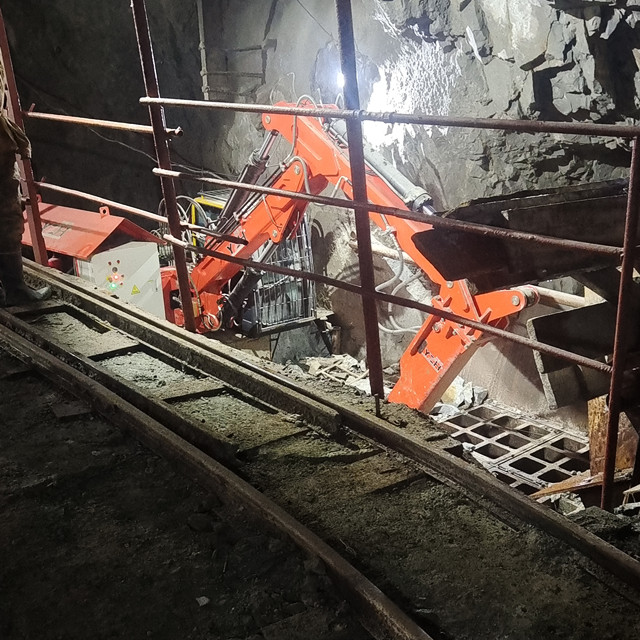

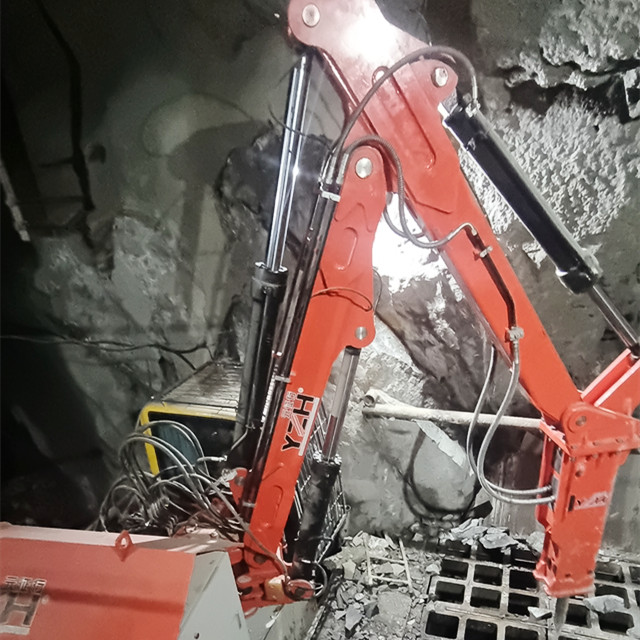

The Fixed Type Rockbreaker Boom System has a wide range of applications and can be used for secondary crushing in mining to solve the problem of large stone blockage; In the sand and gravel aggregate plant, used for crushing operations to improve production efficiency; In metallurgical smelters, foundries, etc., materials can be transported, grabbed, and other operations; In the cement plant, assist in handling the transportation, processing, and other aspects of raw materials and finished products. In addition, it can also be applied to power plants, ports, and docks to assist in the unloading and handling of bulk materials.
In order to better meet customer needs, YZH also provides customized services. The company will tailor the most suitable fixed robotic arm for customers based on their actual working conditions, such as the size of the workplace, the characteristics of materials, the frequency of operations, and other factors. At the same time, environmental factors such as temperature, humidity, altitude, etc. will also be considered to ensure that the equipment can operate stably in different environments.
