Fixed Boom System

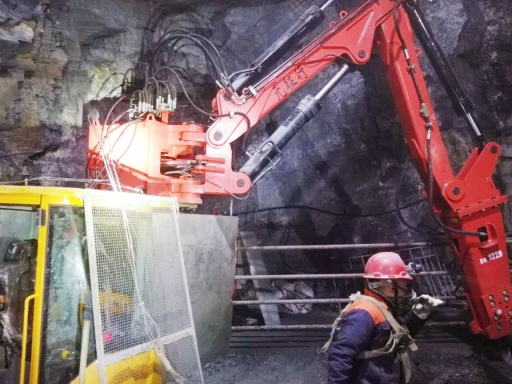

YZH Fixed Boom System is a stationary unit, a machine which is used to manipulate large rocks, including reducing large rocks into smaller rocks.
Availability:
Quantity:
  • BA300

  • YZH

Fixed Boom System

YZH Fixd Boome System is a machine that is used to manipulate large rocks, including reducing large rocks into smaller rocks. It can be used in the mining, quarrying, aggregate, cement, metallurgical and foundry industries to remove oversize rocks. It is easy to operate and is energy saving.

Model No. BA300
Max. Horizontal Working radius(R1) 4880mm
Max. Vertical Working radius(R2) 3270mm
Min. Vertical Working radius(R3) 1570mm
Max. Working depth 3170mm
Rotation 170°

rockbreaker

pedestal boomPedestal Breaker Booms

Previous:
Next:
YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
