In the fiercely competitive industrial market, high-performance and reliable equipment is the key to boosting enterprises’ core competitiveness. The Stationary Hydraulic Rockbreaker Boom System features numerous outstanding advantages, making it a dependable solution for industrial production. Below is a detailed introduction to the WHC880 Stationary Hydraulic Rockbreaker Boom System.
Main parameters
Model No. | WHC880 | |
Boom Weight (without hammer) | kg | 7511 |
Max. Horizontal working radius | mm | 11300 |
Max. Vertical working radius | mm | 8960 |
Min. Vertical working radius | mm | 3150 |
Max. Height | mm | 7390 |
Max. Working Depth | mm | 7270 |
Rotation | ° | 360 |
Features
Flexible control enables fixed-point positioning; video monitoring & 10–20 km remote control provide diverse operation modes. High-performance controller supports multi-parameter fusion.
Low-noise hydraulic crushing, electric motor drive for clean energy use; energy costs reduced by over 60% vs diesel equipment.
Premium hydraulic rockbreaker greatly raises productivity. Integrated optimized system delivers superior performance, easy maintenance, and 85% lower failure rate than diesel alternatives.
One machine fits multiple front attachments. Modular design adapts fast to varied needs, stable long-run operation under corrosive, explosion-proof and high-altitude harsh conditions.
High-efficiency shock absorber protects machine and foundation from impact loads. Internationally branded core parts ensure reliability. Simulation-optimized layout with high safety factor supports 24h continuous work.
Main Components
A complete Stationary Hydraulic Rockbreaker Boom System mainly consists of four core assemblies:

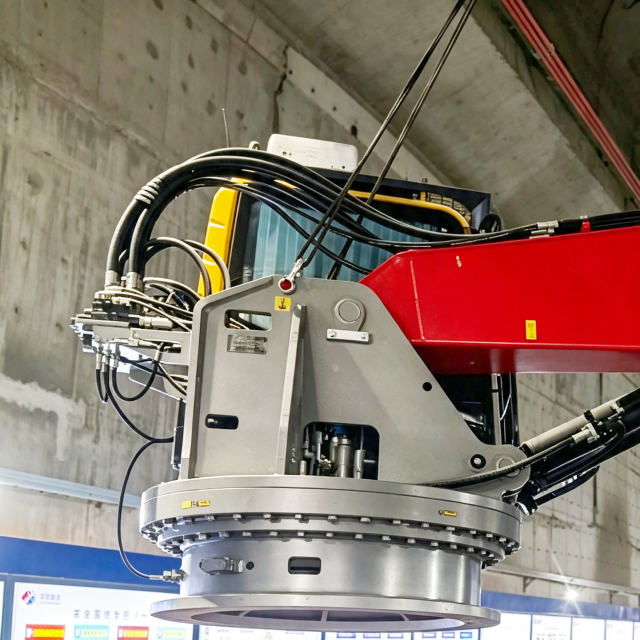

Pedestal & Slew Assembly It includes heavy-duty steel base, slewing bearing and slewing cylinder, which is anchored to concrete foundation to support the whole boom and realize horizontal rotation.

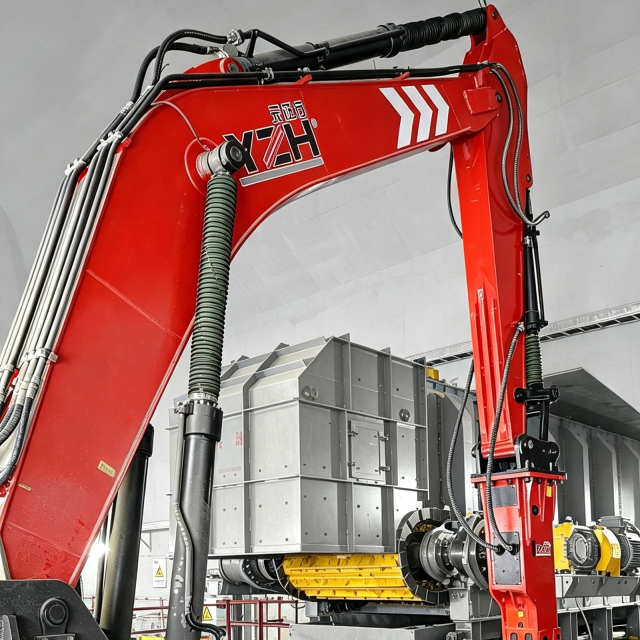

Articulated Boom Assembly Made of high-strength alloy steel, the articulated boom set covers main boom, secondary boom and all hydraulic luffing cylinders, enabling flexible positioning of the hydraulic hammer within full working range.

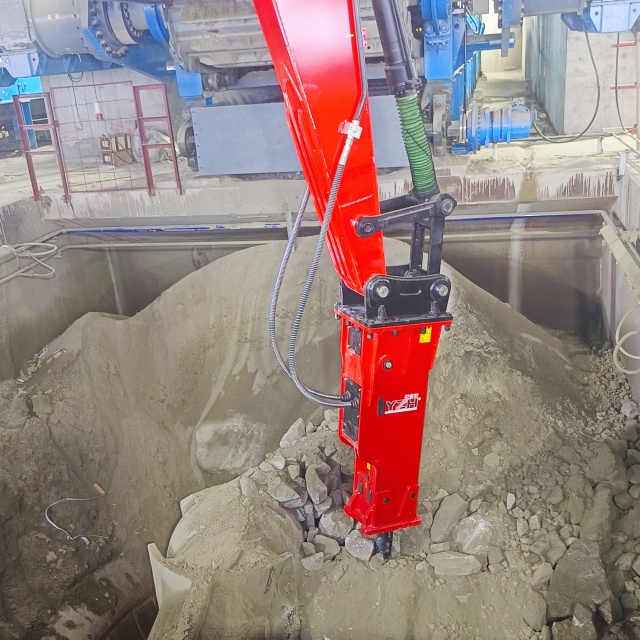

Hydraulic Rockbreaker Hammer The impact core of the system. Driven by high-pressure hydraulic oil, it delivers continuous high-frequency impact force to break oversized rocks and eliminate crusher blockages.
Hydraulic Power Unit & Control System The hydraulic power pack supplies stable hydraulic power for all movements. Operators can control the boom via fixed cabin, wired control panel or wireless remote control, with complete overload and temperature protection functions.
Main application scope
Our stationary hydraulic rockbreaker boom fits extensive industrial scenarios: mines, quarries, sand yards, smelters, foundries, cement plants, power plants, ports, chemical factories, as well as highway, railway and water conservancy construction. It also handles railway wagon material unloading and slag disposal work. The machine greatly boosts production efficiency and lowers labor costs for factories.
About us
YZH supports full customization to meet your personalized demands: we offer standard units and tailor-made crushing machinery adapted to your actual working conditions, with customized solutions for special environments and unique operational needs. For reliable industrial crushing equipment, choose YZH Stationary Hydraulic Rockbreaker Boom System. We are ready to cooperate with you for win-win results.
