WHE1500
YZH

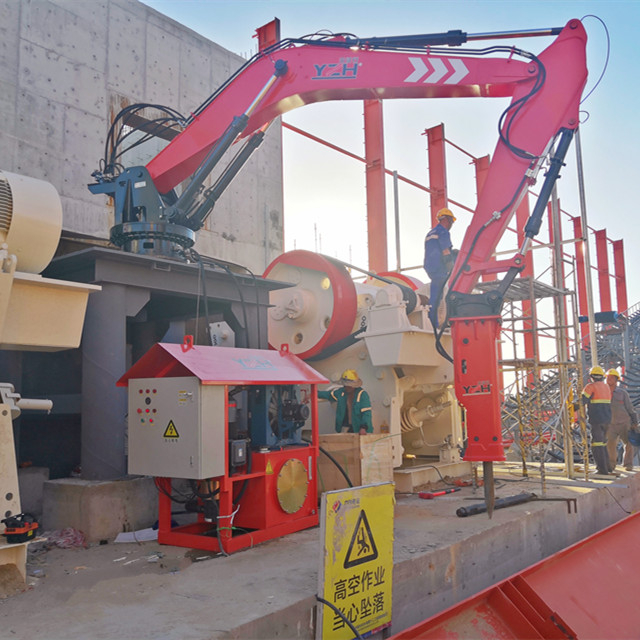

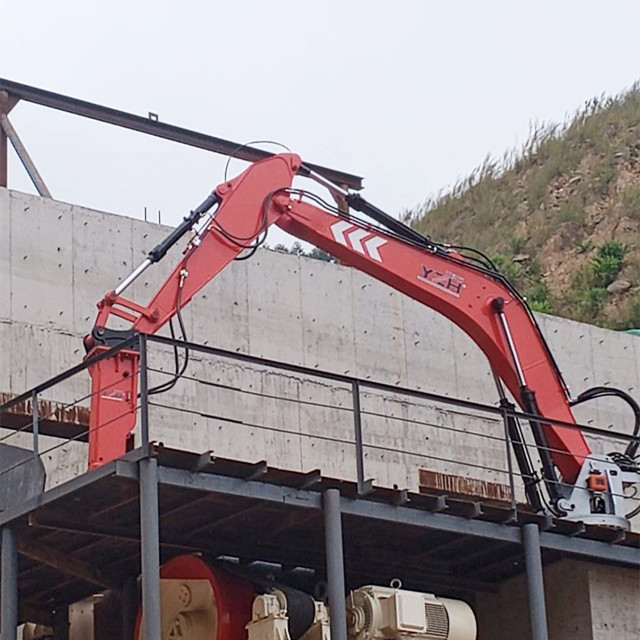

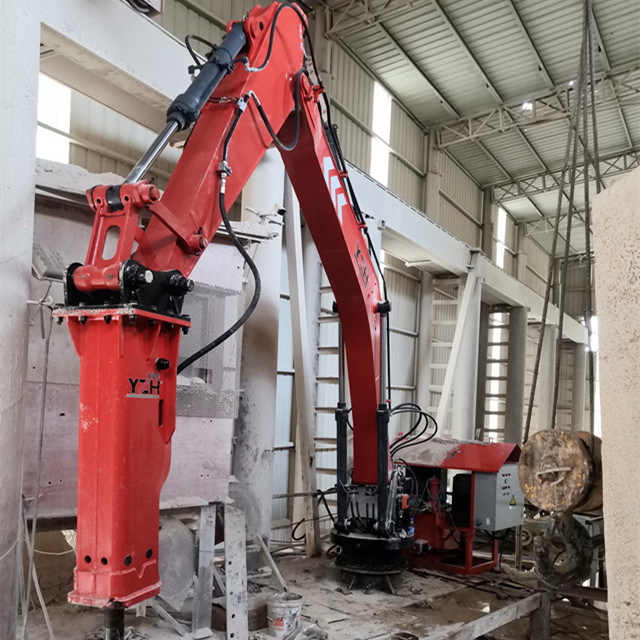

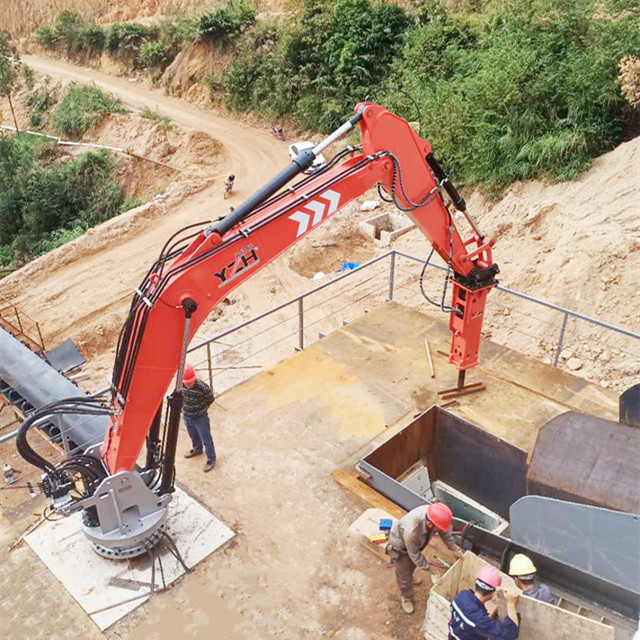

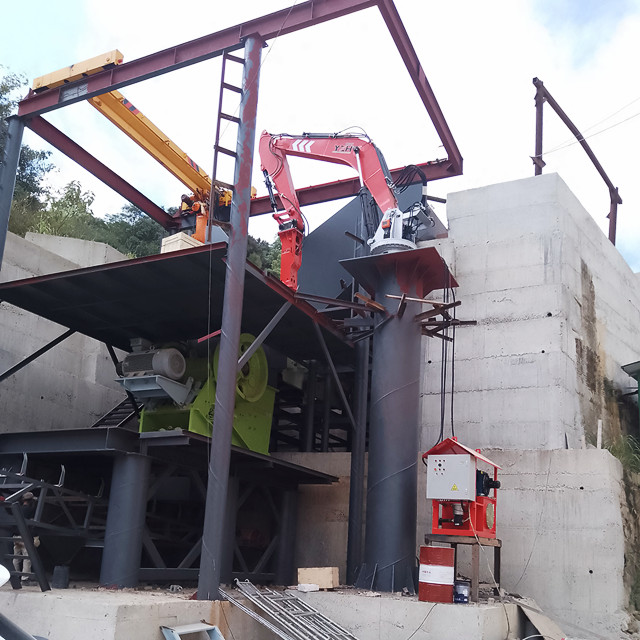

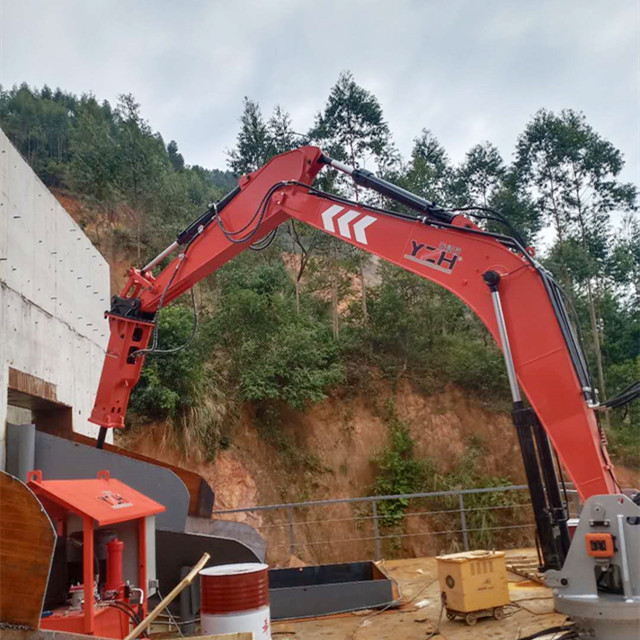

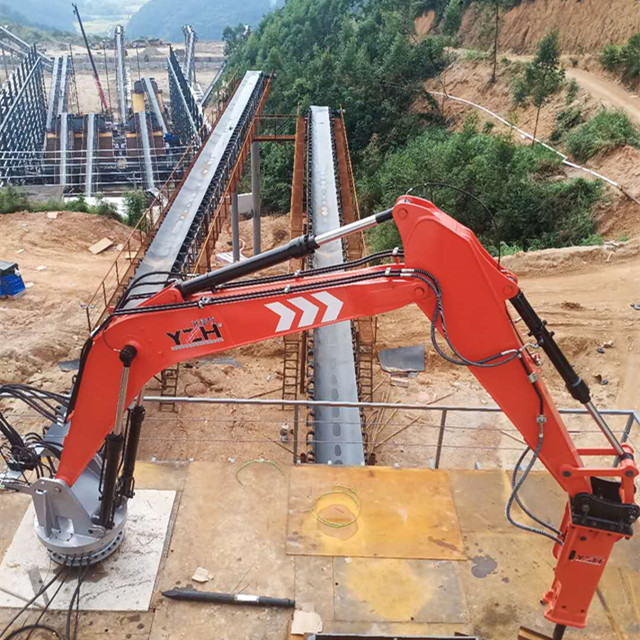

YZH Fixed Rockbreaker Boom System
Fixed Rockbreaker boom system adopts the method of secondary wall breaking. The material enters the material port for crushing. Due to the uneven size of the stones, some oversized stones cannot be perfectly crushed, leading to blockage of the material port, damage to the machine, and reduced production efficiency. Fixed Rockbreaker boom system can perfectly solve this problem. Fixed Rockbreaker boom system is perfectly matched with crushing facilities to crush oversized stones into suitable sizes, effectively solving the problem of material blockage and promoting the efficient operation of sand and gravel enterprises.
Main parameter:
| Model No. | WHE1500 | |
| Boom weight(without hammer) | kg | 18000 |
| Max.Horizontal Working radius | mm | 17160 |
| Max.vertical working radius | mm | 14530 |
| Max.vertical working radius | mm | 1250 |
| Max.Height | mm | 10200 |
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
YZH Fixed Rockbreaker Boom System
Fixed Rockbreaker boom system adopts the method of secondary wall breaking. The material enters the material port for crushing. Due to the uneven size of the stones, some oversized stones cannot be perfectly crushed, leading to blockage of the material port, damage to the machine, and reduced production efficiency. Fixed Rockbreaker boom system can perfectly solve this problem. Fixed Rockbreaker boom system is perfectly matched with crushing facilities to crush oversized stones into suitable sizes, effectively solving the problem of material blockage and promoting the efficient operation of sand and gravel enterprises.
Main parameter:
| Model No. | WHE1500 | |
| Boom weight(without hammer) | kg | 18000 |
| Max.Horizontal Working radius | mm | 17160 |
| Max.vertical working radius | mm | 14530 |
| Max.vertical working radius | mm | 1250 |
| Max.Height | mm | 10200 |
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
