YZH Pedestal Rockbreaker

YZH pedestal rockbreaker is a machine typically used in mining with high quality.
  • BD690

  • YZH

YZH Pedestal Rockbreaker

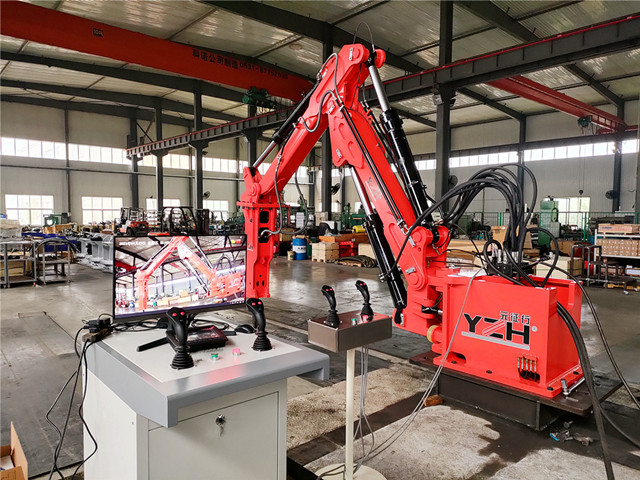

YZH pedestal rockbreaker consists of pedestal boom, hydraulic hammer, hydraulic power unit and operating control.

Equipped with electric motor drive and remote control, the work becomes more efficient. It can quickly eliminate crusher blocks and provide smooth material flow. The suitable location of equipment enables you to reach the crusher and hopper at the same time.

We provide customized solution and optional equipment.

Model No. BD690
Max. Horizontal working radius(R1) 9980mm
Max. Vertical working radius(R2) 7640mm
Min. Vertical working radius(R3) 3000mm
Max. working depth(H2) 6230mm
Rotation 170°

hydraulic rockbreakerboom systemrockbreaker

YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
