WHC1070
YZH

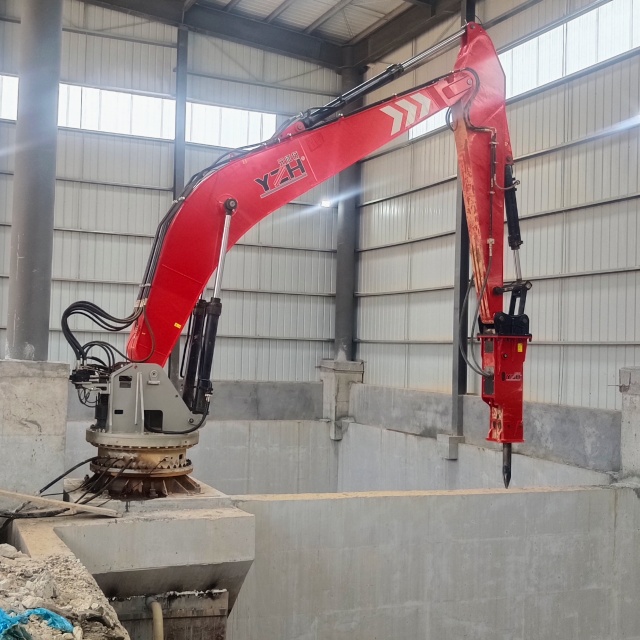

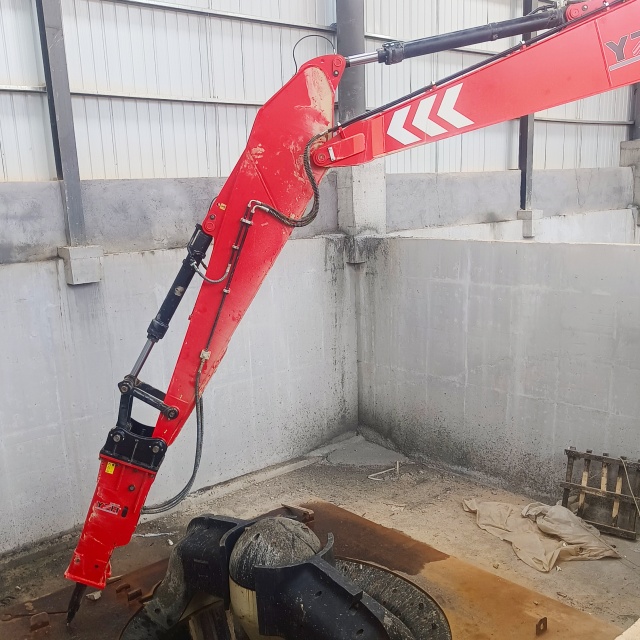

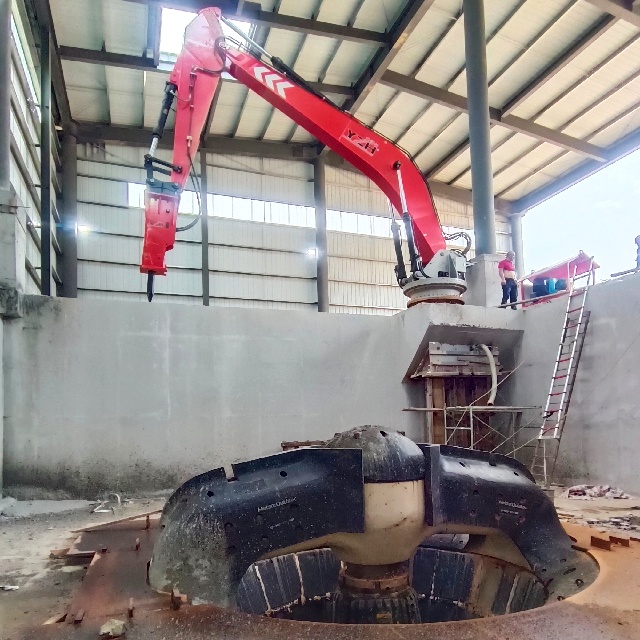

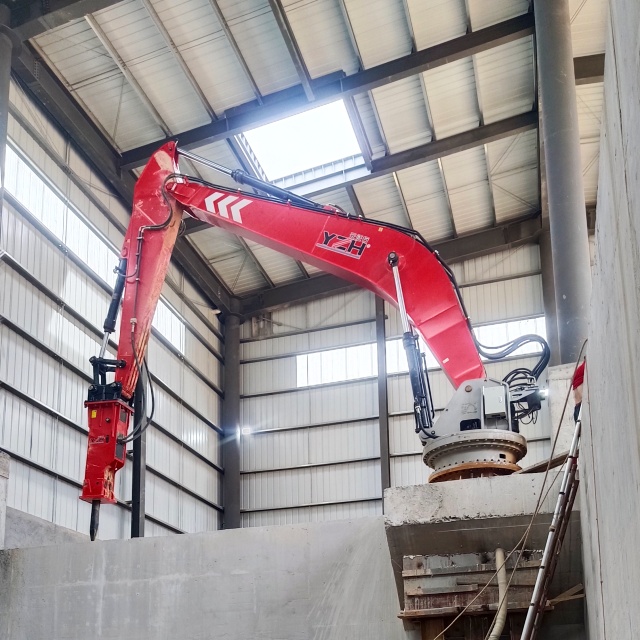

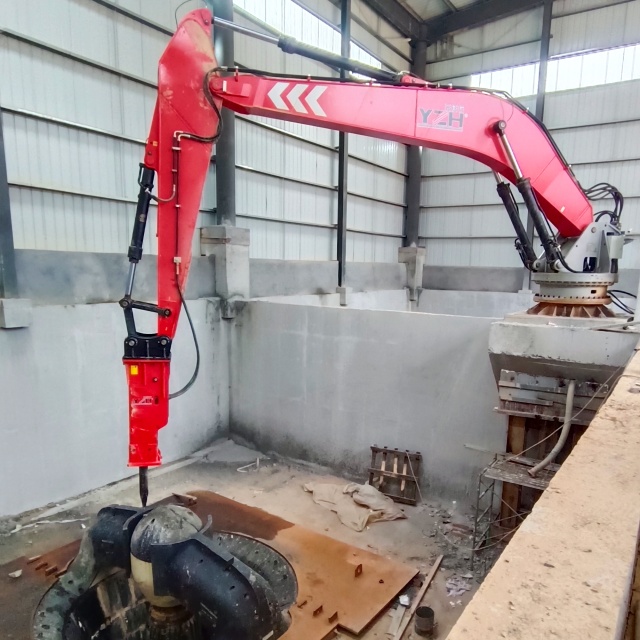

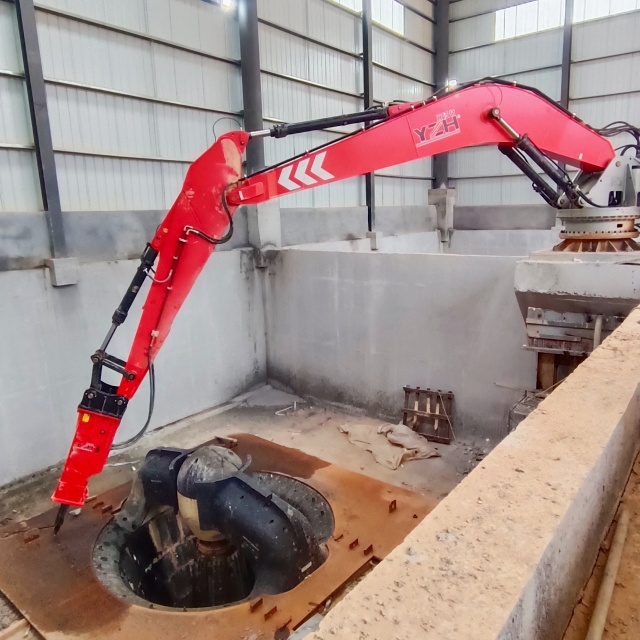

Our multifunctional stationary hydraulic rock breaker boom is a universal solution for multiple industrial crushing scenarios. With reliable performance and long service life, it fits various site demands perfectly. We support complete OEM & ODM customization to adjust configurations for your specific working conditions and boost work efficiency. Our professional manufacturing capability ensures premium products beyond your standards.
Main Parameters
Model No. | WHC1070 | |
Boom Weight (without hammer) | kg | 8929 |
Max. Horizontal working radius | mm | 13043 |
Max. Vertical working radius | mm | 10700 |
Min. Vertical working radius | mm | 3370 |
Max. Height | mm | 7464 |
Max. Working Depth | mm | 8943 |
Rotation | ° | 360 |
Equipped with a matched dedicated electro-hydraulic power station, the entire boom and breaker system achieves an optimal power-to-weight ratio and hydraulic energy efficiency, realizing precise power output matching for different working conditions. Adopting flexible hydraulic control technology, the system supports accurate fixed-point positioning and stable breaking operation, avoiding ineffective impact and energy waste. Built with high-strength welded steel structure and equipped with shock absorption and buffer devices, the boom system boasts excellent impact resistance, fatigue resistance and durability, adapting to harsh working environments with high dust, high vibration and heavy load.
Integrated with remote control and video monitoring functions, the equipment realizes diversified intelligent operation modes. Operators can complete remote start, stop, positioning and crushing operations far away from the high-risk working area, thoroughly avoiding safety hazards such as flying stones and falling materials. The whole machine features low noise, low energy consumption and environmental-friendly operation, which effectively improves on-site working conditions and reduces labor intensity while ensuring continuous and efficient production.
We provide full-standard OEM and ODM customized services to meet personalized demands from global customers. According to on-site working conditions, crusher models, material hardness and production requirements, we can customize boom extension length, breaking hammer impact power, hydraulic system parameters, control modes and equipment appearance colors. Meanwhile, we support brand logo customization, exclusive packaging design and structural optimization upgrading. Whether it is standard configuration equipment or non-standard customized solutions, we can deliver high-quality matching products to maximize customers’ production efficiency and economic benefits.
With independent R&D and manufacturing capabilities, YZH focuses on the production and optimization of hydraulic crushing boom systems for many years. All products adopt mature hydraulic pneumatic control technology, with stable performance, low failure rate and long service life. Strict quality control standards and professional after-sales service system ensure that every customized and standard product can bring stable, efficient and high-return operation experience for global users.
