Hydraulic Rockbreaker Boom

Hydraulic rockbreaker boom is a safer way to manage blockages and to clear build ups in the crusher cavity.
  • WHA460

  • YZH

Hydraulic Rockbreaker Boom

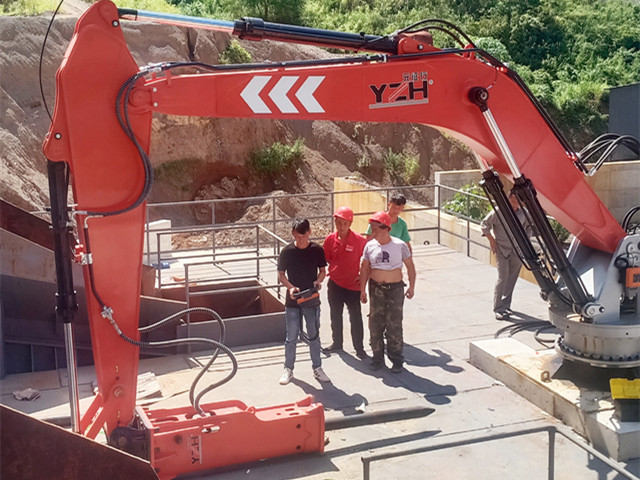

Hydraulic rockbreaker boom is a stationary system that is used to mining. It consists of pedestal booms, hydraulic hammer, hydraulic power unit and operating control. Its strong points are that its suitable location of the equipment enables you to reach the crusher and hopper at the same time, and it can quickly eliminate crusher blocks and provide smooth material flow.

Model No. WHA460
Max. Horizontal working radius(R1) 6000mm
Max. Vertical working radius(R2) 4510mm
Min. Vertical working radius(R3) 1630mm
Max. working depth(H2) 4000mm
Rotation 360°

boomrockbreaker _640x480Rockbreakerpedestal boom system

YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
