WHC1070
YZH

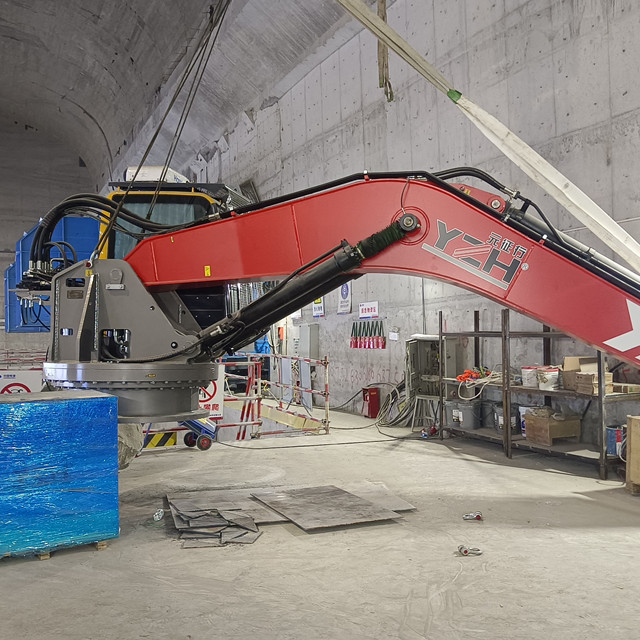

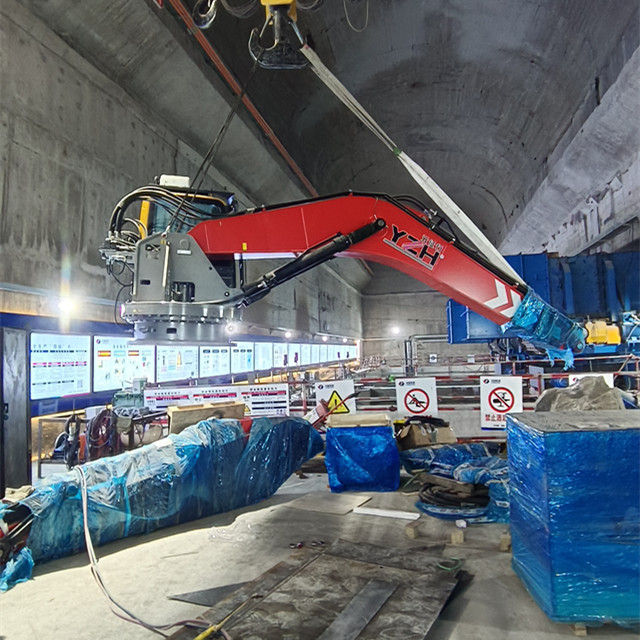

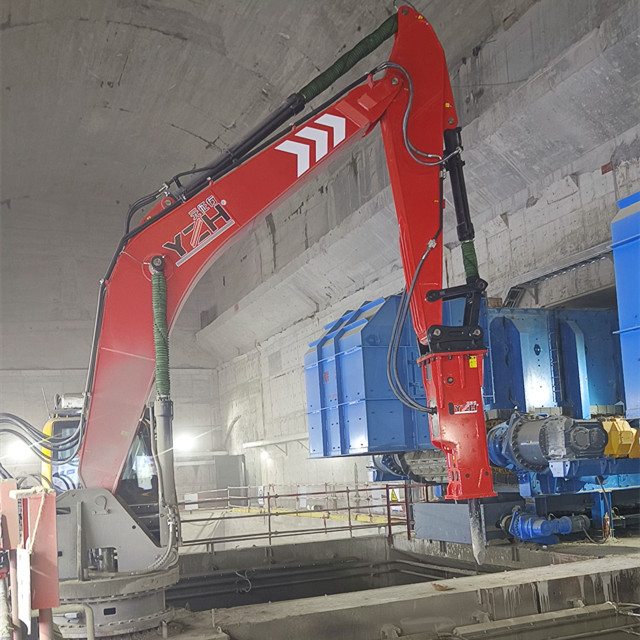

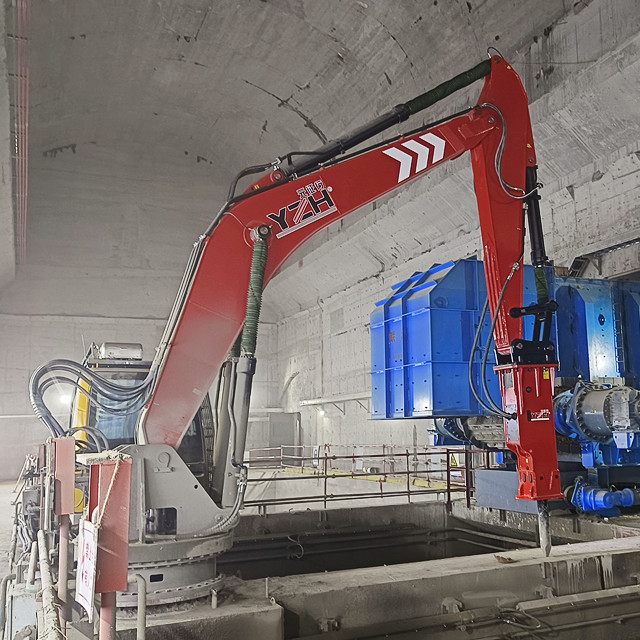

YZH WHC1070 Breaker Boom
Main parameters of YZH WHC1070 Breaker Boom:
Model No. | WHC1070 | |
Boom weight(without hammer) | KG | 9039 |
Max.Horizontal Working radius | MM | 13040 |
Max.vertical working radius | MM | 10700 |
Min.vertical working radius | MM | 3370 |
Max.Height | MM | 7464 |
The Scope of Work Diagram of YZH WHC1070 Breaker Boom:
The Benefits of YZH WHC1070 Breaker Boom:
1. Intelligent operation: Supports remote control (range up to 10-20km) and video monitoring, offering diverse and secure operating methods. The system employs flexible control for precise positioning.
2. Efficiency and Durability: Equipped with a high-quality hydraulic breaker delivering potent impact force and superior operational efficiency. Critical components utilise premium specialised steel and manganese steel bases, offering lightweight construction, exceptional wear resistance, and robust load-bearing capacity for enduring service life.
3. Exceptional Adaptability: Modular design enables rapid customisation to diverse client requirements. Materials can be tailored for extreme environments including sub-zero temperatures, humidity, corrosion, explosion-proofing, and high altitudes. Interchangeable front attachments facilitate multi-functional operation.
4. Energy Efficiency and Environmental Protection: Electrically powered for clean, energy-efficient operation with zero on-site emissions. Compared to traditional diesel equipment, energy consumption costs are reduced by over 50%.
5. Significant Economic Benefits: Operating costs amount to just one-sixth of equivalent-power excavators. Substantially reduces downtime caused by material blockages, boosting initial crusher output by up to 20%. Maintenance costs are low, with a significantly reduced failure rate compared to conventional equipment.
The Application of YZH WHC1070 Breaker Boom:

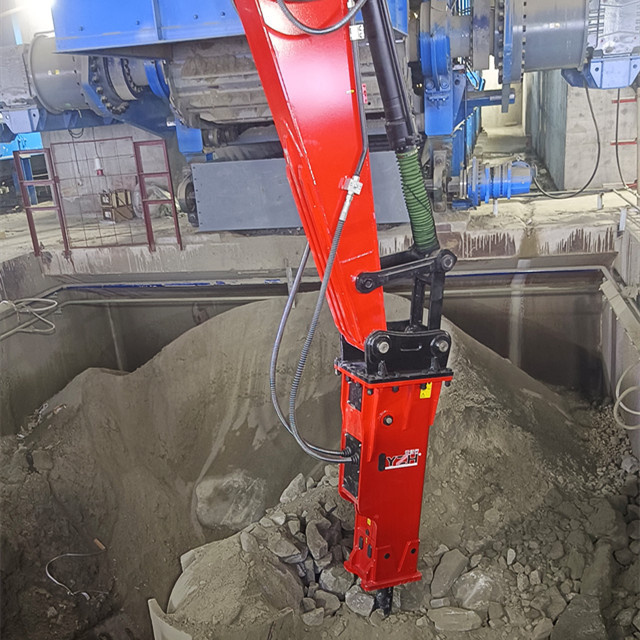

This Breaker Boom is primarily employed for secondary crushing of large material blocks, finding extensive application in the following sectors: Quarries and Mines: Resolving blockages at screen grates and crusher feed openings. Aggregate industry: Clearing blockages at feed hopper openings in crushing production lines. Metallurgical and foundry plants: Shell removal, dismantling, and slag clearance for various metallurgical furnaces. Other applications: Large material handling in cement plants, power stations, ports, and terminals.
