WHA610
YZH

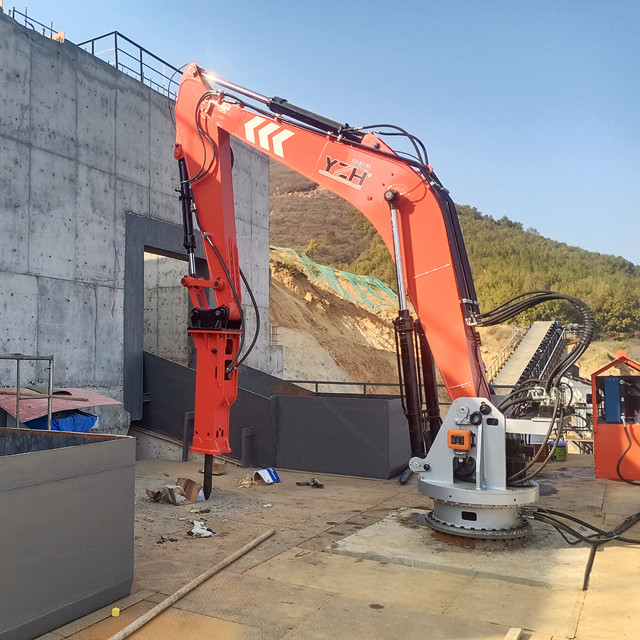

YZH stationary boom system
The YZH stationary boom system product line is renowned for its intelligent operation, high energy efficiency, strong adaptability, and exceptional reliability. Below is a detailed introduction to the WHA610 stationary boom system.
Main Parameters of the WHC610 Stationary Boom System：
Model No. | WHA610 | |
Boom weight(without hammer) | KG | 2196 |
Max horizontal working radius | MM | 7530 |
Max.vertical working radius | MM | 6090 |
Min.vertical working radius | MM | 1680 |
Max.Height | MM | 4262 |

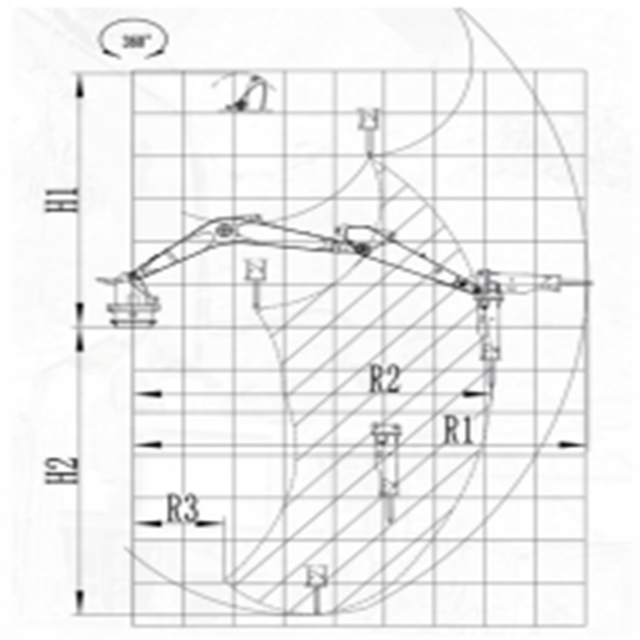

The Scope of Work Diagram for the WHC610 Stationary Boom System：
The Features of the WHC610 Stationary Boom System：
1. Structural Design: Fixed robotic arms typically utilize high-strength steel and modular design to ensure stability and durability during high-intensity operations.
2. Power System: Features an electro-hydraulic drive system delivering stable power output with low energy consumption.
3. Control Methods: Supports multiple control modes including cab operation and remote control (with a range of 10-20km), equipped with a video monitoring system for intelligent operation.
4. Attachment Compatibility: Achieves multi-functional operation by swapping front attachments (e.g., hydraulic breakers, hydraulic grapples, buckets) to adapt to diverse task requirements.
5. Working Range: The horizontal reach of the working arm typically spans 4.88m to 20.4m, with swing angles ranging from 170° to 360°, ensuring extensive coverage.
The Benefits of WHC610 Stationary Boom System：
1. High Efficiency & Energy Savings:
Reduces energy costs by over 50% compared to traditional diesel equipment (up to 60% in certain scenarios).
Electric drive eliminates exhaust emissions for enhanced environmental performance.
2. Advanced Intelligence:
Features a flexible control system enabling precise positioning.
Remote monitoring and operation minimize risks associated with close-range personnel operations.
3. Strong Adaptability:
Operates reliably in harsh environments (e.g., corrosive or high-explosion-risk areas). Modular design enables rapid customization for diverse client requirements.
4. Low Maintenance Costs:
Failure rates reduced by over 80% compared to traditional equipment. Simple maintenance minimizes downtime.
5. Safe and Reliable:
High-performance shock absorption system reduces impact damage to equipment, extending service life.
The Application of WHC610 stationary boom system：
YZH stationary boom system are widely applied in the following sectors:
Mining: Secondary crushing of large ore blocks, resolving chute blockages and screen jams (e.g., metal mines, coal mines).
Aggregate Industry: Clearing large rock obstructions at crushing plant feed points to boost production efficiency.
Metallurgy & Foundry: Used for slag removal, ladle dismantling, shell breaking, and similar operations.
Cement Plants & Chemical Industry: Handles blockages in hot clinker or corrosive environments.
Ports & Terminals: Breaks large materials to assist loading/unloading operations.
A metallurgical foundry adopted Yuan Zhengxing's fixed robotic arm for ladle slag removal, replacing manual labor. This increased efficiency by approximately 50% while eliminating risks associated with high-temperature manual operations.
A large aggregate plant installed this robotic arm at the jaw crusher feed inlet to resolve material jams, reducing downtime and boosting overall output.
