China Manufaturer Hydraulic Rockbreaker Boom System
In today's industrial field, the performance of mechanical equipment directly affects production efficiency and cost control. The BHC630 Hydraulic Rockbreaker Boom System has become the ideal choice for many enterprises with its excellent performance characteristics and significant advantages, playing a key role in many fields such as mines, quarries, sand and gravel aggregate yards, metallurgical foundries, etc. The BHC630 Hydraulic Rockbreaker Boom System has a strong working capacity and meets various working conditions.
Main parameters of BHC630 Hydraulic Rockbreaker Boom System:
Model No. | BHC630 | |
Boom weight(without hammer) | kg | 6510 |
Max horizontal working radius | mm | 9120 |
Max.vertical working radius | mm | 7100 |
Min.vertical working radius | mm | 2705 |
Max.Height | mm | 6360 |
The Benefits of of BHC630 Hydraulic Rockbreaker Boom System:
Powerful working capacity to meet various working conditions

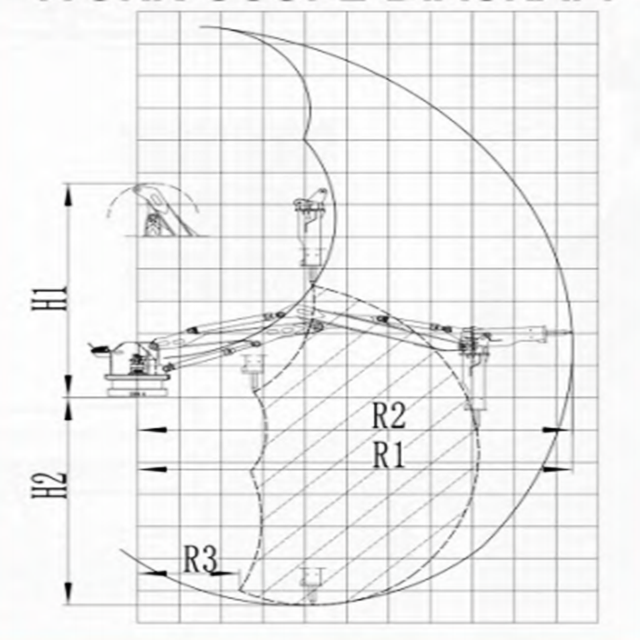

With a working radius of 9120mm, a vertical crushing radius of 7100mm, a minimum vertical crushing radius of 2705mm and a working depth of 58,800mm, the BHC630 stationary robot arm can easily cover a large working range, and can meet the requirements of different site layouts and work tasks, whether it is dealing with long-distance materials or working in deep and narrow spaces with ease. Its working arm can rotate 360°, flexible and without dead angle, and can quickly switch directions during operation to accurately crush materials at all angles, which greatly improves the working efficiency and reduces the time for moving and adjusting the equipment.
Advanced hydraulic system, stable and efficient operation
This Hydraulic Rockbreaker Boom System adopts high-pressure gear pump as the main pump, with 37Kw, 380V, 50Hz main pump motor, the working pressure of the system can be up to 25MPa, the flow rate of the system is 100L/min, which is strong and powerful, providing stable and powerful power output for the crushing operation, which can be easily coped with even when facing the hard materials. The oil tank has a volume of 370L and is equipped with a three-stage hydraulic oil filter (suction, high pressure and return oil filter), which ensures that the hydraulic oil is clean, prolongs the service life of all components of the hydraulic system, reduces the probability of failures, and ensures the equipment to run stably for a long time.
Diversified intelligent control, convenient and safe operation
BHC630 is equipped with video monitoring and remote control function, and the remote control distance can reach 10 - 20km, so the operator does not need to be in the dangerous operation site, but can monitor the operation situation in real time and accurately control the robotic arm from a remote location, which greatly improves the safety of the operation, and reduces the labour intensity of the workers and the risk of safety. At the same time, equipped with a high-performance controller to achieve multi-parameter fusion and flexible control, it can achieve fixed-point positioning, ensure operational precision and improve crushing quality, whether it is fine work or large-scale crushing tasks, can be perfectly completed.
Reliable quality, adaptable to harsh environments
The Hydraulic Rockbreaker Boom System is equipped with high-performance shock absorption system, which effectively reduces the damage of impact load on the whole machine and infrastructure, and prolongs the service life of the equipment; the core components are configured with international brands, which are of reliable quality and high stability, and can meet the demand of uninterrupted work. Moreover, it adopts modular design, can quickly adapt to the different needs of customers, but also a multi-functional machine, equipped with a variety of front-end tools, corrosion, explosion-proof and high-altitude and other harsh environments in the long-term stability of the work, the scope of adaptation is extremely wide, for a variety of complex working conditions under the operation to provide a strong guarantee.
Energy saving and environmental protection, reduce operating costs
BHC630 adopts hydraulic vibration crusher, which has good mute effect and reduces the influence of operation noise on the surrounding environment and personnel; the motor drive is clean and energy-saving, and the energy cost is more than 60% lower than that of the traditional diesel equipment, which is not only in line with the requirements of environmental protection, but also saves a lot of operation cost for the enterprise. At the same time, its high maintainability, the failure rate than the traditional diesel equipment to reduce 85%, reducing maintenance costs and downtime, and further improve the economic efficiency of enterprises.
BHC630 Hydraulic Rockbreaker Boom System. has become a leader in the field of industrial crushing with its powerful performance, intelligent control, reliable quality, wide adaptability, and energy saving and environmental protection and many other advantages, providing solid support for enterprises to improve production efficiency, reduce costs and achieve sustainable development.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
