BHB600
YZH

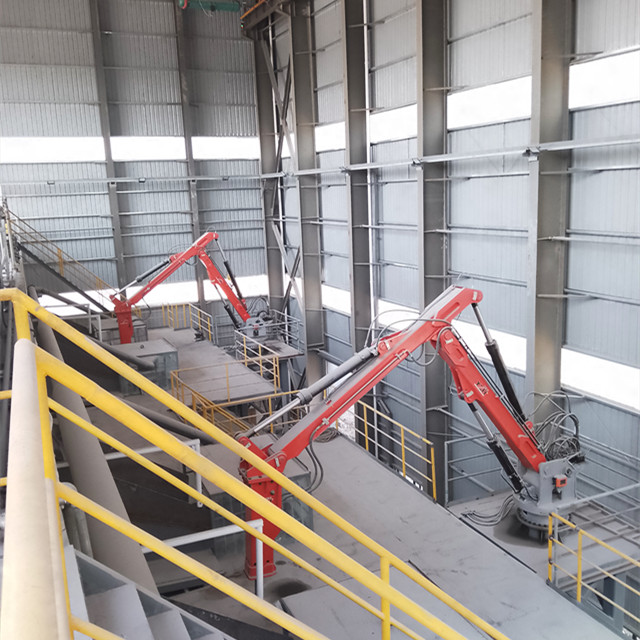

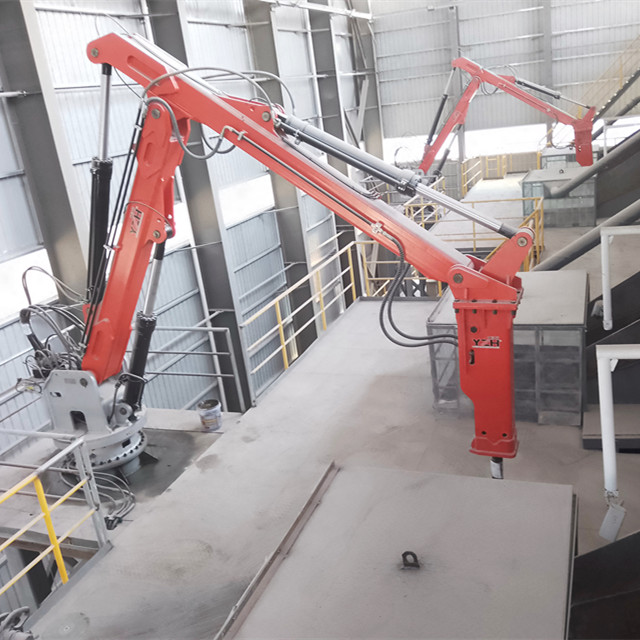

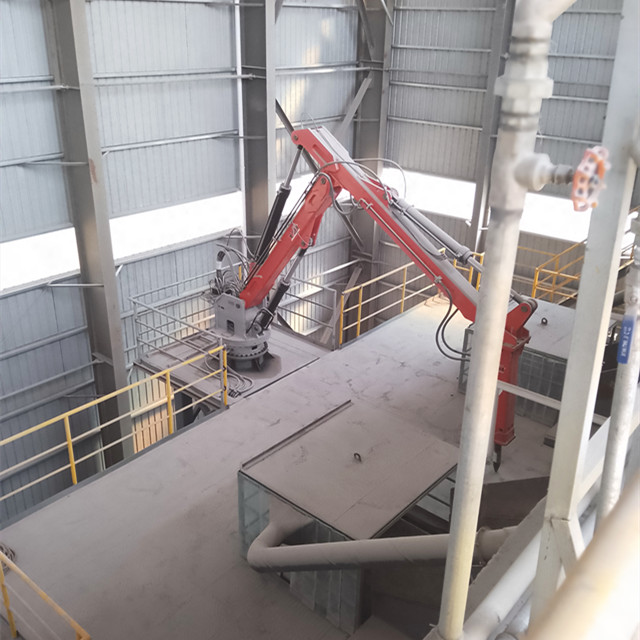

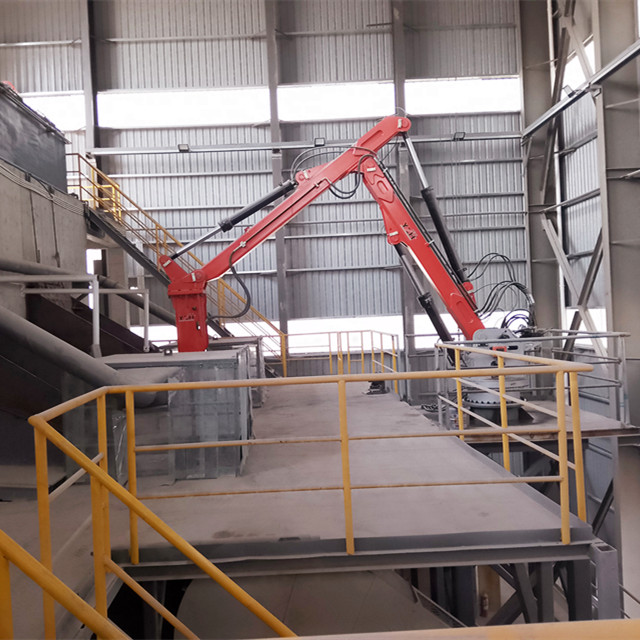

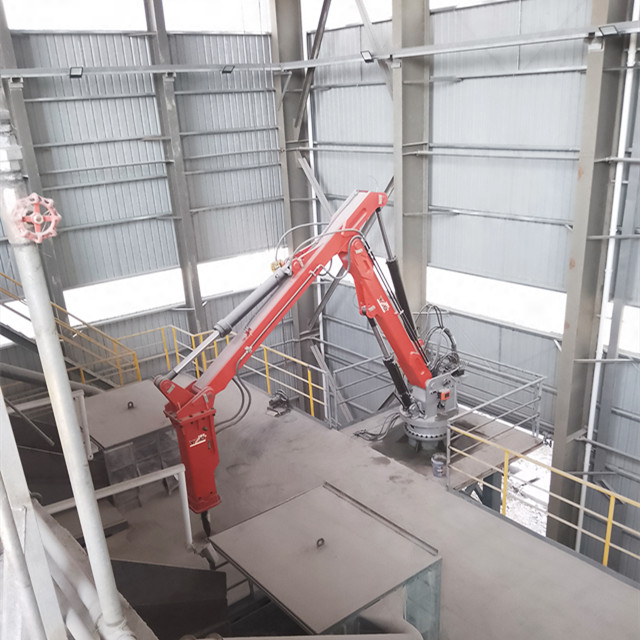

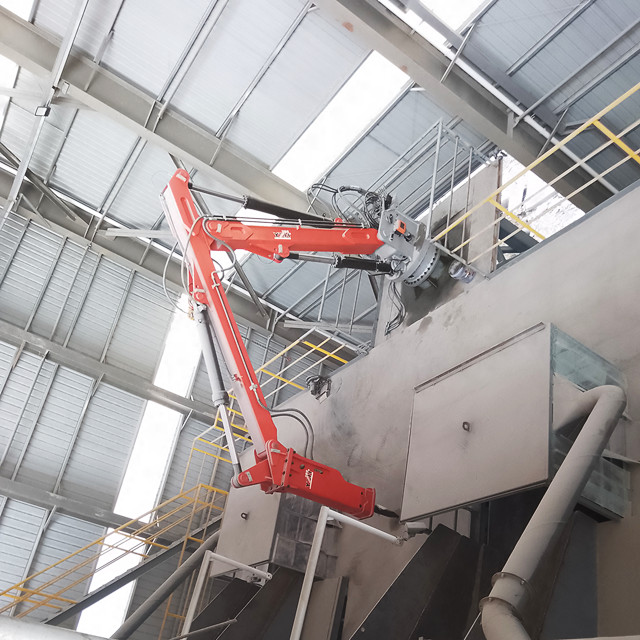

YZH Static Type Pedestal Boom System
In today's fiercely competitive industrial field, choosing a high-performance, reliable, and durable mechanical equipment plays a crucial role in improving production efficiency and reducing operating costs. YZH has become a trusted partner for many enterprises by providing a series of Static Type Pedestal Boom System to global customers based on its years of deep accumulation and continuous innovation in the industry. Today, let me introduce the Static Type Pedestal Boom System of BHB600 model in detail.

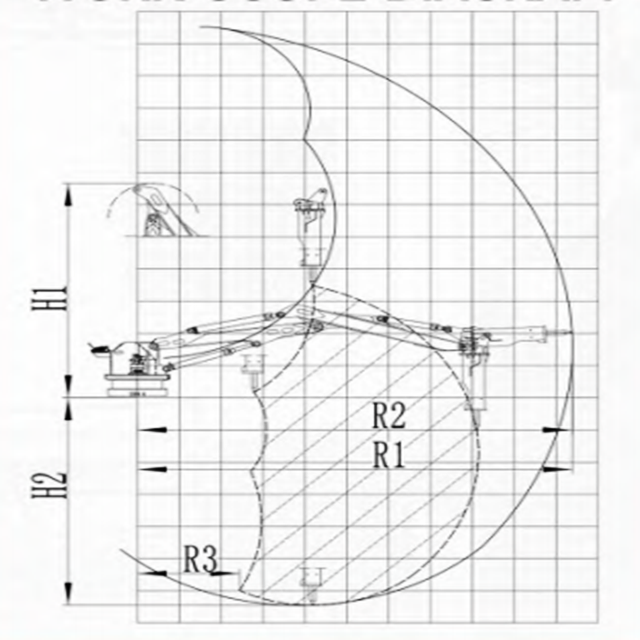

Main parameters of BHB600 Static Type Pedestal Boom System:
| Model No. | BHB600 | |
| Boom weight(without hammer) | KG | 3410 |
| Max horizontal working radius | MM | 8280 |
| Max.vertical working radius | MM | 6230 |
| Min.vertical working radius | MM | 1600 |
| Max.Height | MM | 4800 |
The Features of BHB600 Static Type Pedestal Boom System:
1. The structural components have undergone strength verification and aging treatment, and are processed using high-strength structural steel through stamping and gas shielded welding methods, with extremely strong load-bearing capacity. The 360 ° rotation angle can fully meet various customer requirements.
2. It can be equipped with a crushing hammer from the Yuanzheng Asset brand, or other brands of crushing hammers can be selected, such as the Finnish RAMMER hydraulic crushing hammer, the Italian Indeco hydraulic crushing hammer, and the Krupp hydraulic crushing hammer. The crushing hammer equipped by Yuanzheng Bank can crush a minimum of 60 tons of ore per hour, with a crushing block size of about 1m ³ and a maximum crushing hardness rock coefficient of F17. All indicators meet and are superior to the working conditions of most mines.
3. The main components of the hydraulic pump station system (power station), such as constant pressure variable pump, hydraulic proportional multi way valve, pilot control valve, balance valve, buffer valve, etc., are all imported or domestic high-quality brand manufacturers. The operation mode is simple, flexible, efficient, reliable, with high safety factor and energy-saving and consumption reduction.
The standard for the electrical control system is AC 380V50HZ motor drive. The system controls pressure, oil level, oil temperature, working time, etc., and has alarm indicators. The PLC centralized control device and circuit connections adopt a high protection level (IP64). Made of stainless steel shell, it has the advantages of cleanliness, energy saving, low operating cost, strong adaptability, and can work in harsh environments such as high temperature/high humidity/high cold/high dust concentration.
5. The cooling system adopts an air-cooled cooler to control the oil temperature of the system, providing protection for the long-term operation of the equipment and the use of hydraulic components and vulnerable parts, extending the service life of the whole machine and components, and reducing the after-sales maintenance cycle.
6. The cab adopts a sealed type with air conditioning and a reasonable human-machine engineering layout, providing the operator with a more comfortable and relaxed working environment.
7. Wireless remote control, which can achieve dual operation of wired and wireless, making it convenient for operators to move remote control devices.
8. Fiber optic+5G remote video control, which can achieve human-machine separation remote video control operation.
9. After shot blasting for rust removal, military aircraft carrier rust removal primer is applied for spraying, which enhances the rust and corrosion resistance of the equipment under outdoor conditions and prolongs its service life.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
