BHD670
YZH

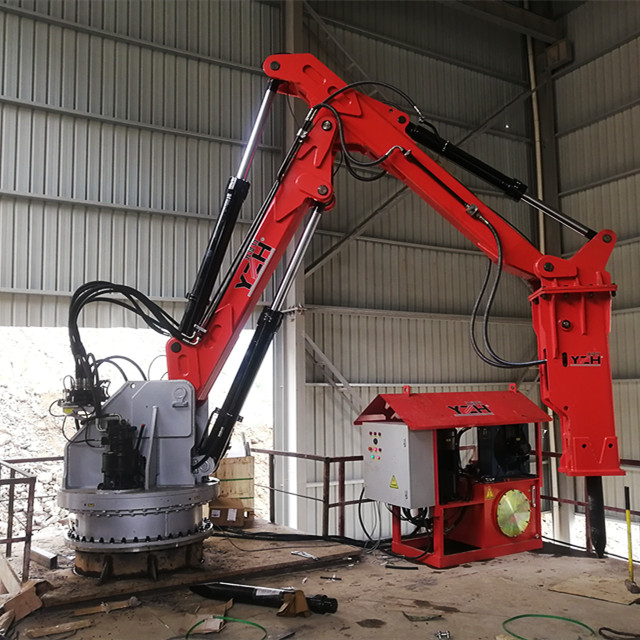

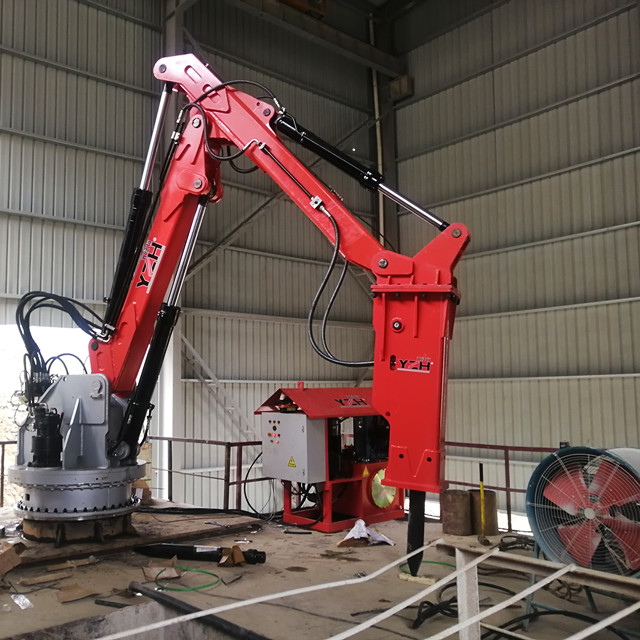

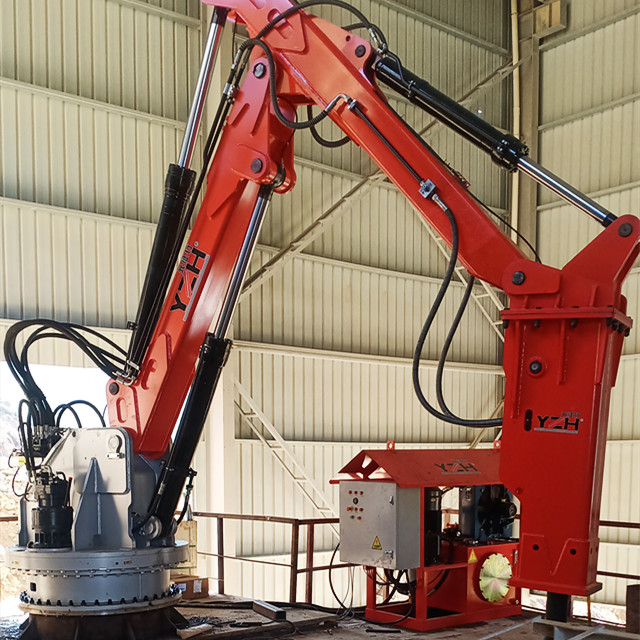

Static rockbreaker boom system
Static rockbreaker boom system is a crushing equipment used in mining and other fields, the following is an introduction from the performance, features, advantages, parameters, use cases and so on:
Performance:
Strong crushing capacity: it can be equipped with a variety of well-known brands of crushing hammers, such as YZH self-produced hydraulic crushing hammers, Finnish RAMMER hydraulic crushing hammers, etc., which can crush 30 tons of ore per hour, with a crushing block size of about 1.5m³, and the maximum crushing hardness of the rock coefficient is F17.

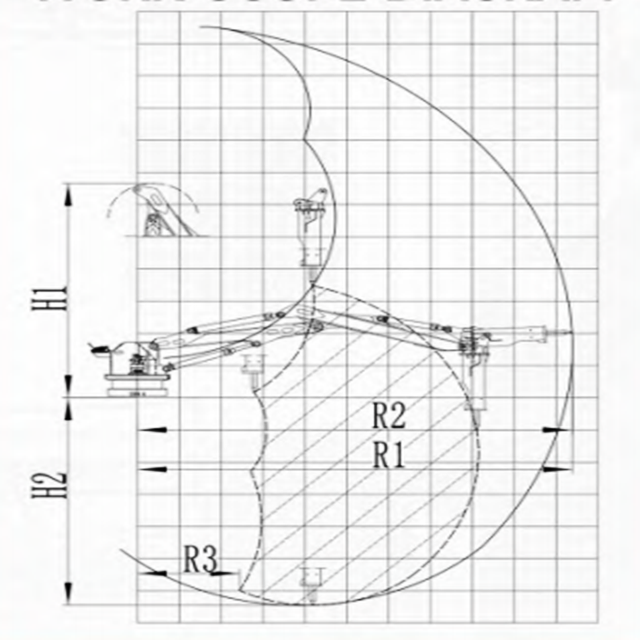

Wide range of operations: the working arm can be crushed up to 19m, the nearest can be crushed distance of 2.2m, can work to cover an area of 4m × 4m, slewing angle of 120 °, the maximum working height of 3.5m.
Features:
Intelligent control: adopting the diversified intelligent control mode of video monitoring + remote control, the remote control distance can reach 10-20km, equipped with high-performance controller, which can realize fixed-point positioning.
Excellent layout design: new simulation optimization design, reasonable layout, equipped with high-performance shock absorption system to reduce the damage of impact load on the whole machine and foundation structure.
Good environmental adaptability: modular design, can be equipped with a variety of front-end tools, can work for a long time in harsh environments such as corrosion, explosion-proof and high altitude.
Advantages:
High efficiency and energy saving: Equipped with high quality hydraulic breaker hammer, combined with the whole machine system integration optimization design, the working efficiency is greatly improved. Meanwhile, the motor drive is clean and energy-saving, and the energy cost is more than 60% lower than traditional diesel equipment.
Safe and reliable: the core components are configured by international brands, with reliable quality and high safety coefficient. And it can be operated remotely, which can improve the safety of workers' work and reduce the hidden danger of safety.
Easy maintenance: the failure rate is 85% less than the traditional diesel equipment, low repair and maintenance costs, but also reduces the wear and tear of the crusher and extends its service life.
Parameters:
Discharge particle size of 1000mm, motor power between 30-75kW, equipment weight of 7720kg, can rotate 360°, maximum working radius of 9600mm, maximum vertical working radius of 7320mm, minimum vertical working radius of 7320mm, maximum height of 6350mm, maximum working depth of 5760mm.
Use Case:

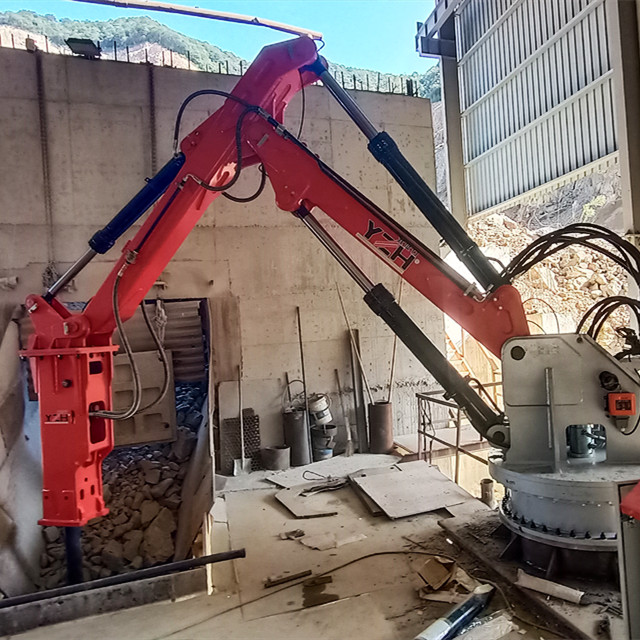

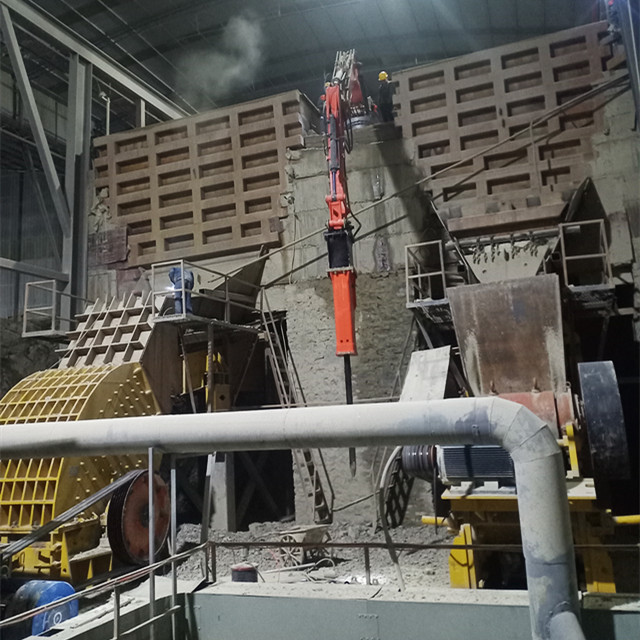

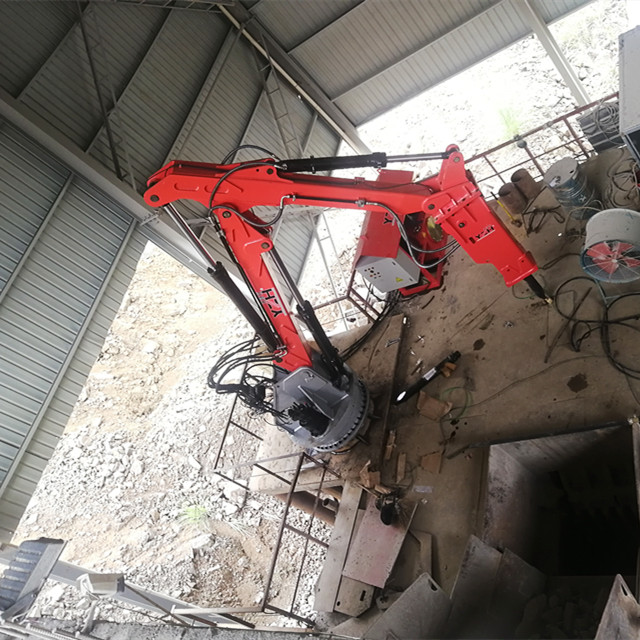

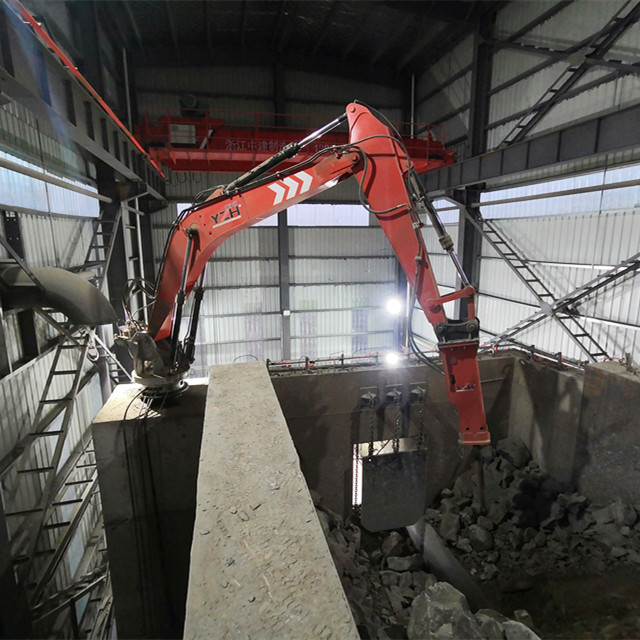

This Static rockbreaker boom system is mainly used in the inlet or grizzly screen of all kinds of mines and quarry crushers for secondary crushing of large materials. It can be installed next to the hopper of primary crusher to crush the oversized stones at the grizzly screen mouth, or next to the hopper mouth of truck hopper and tipper, etc. It can effectively solve the problem of jamming and clogging in crushing production line, and improve the output of the crusher in the initial stage by up to 20%.
