YZH Fixed Rockbreaker Boom System
The YZH WHD1250 Fixed Rockbreaker Boom System is a machine mainly used for secondary crushing of large materials such as ores, etc. The following is an introduction of its parameters, features, Benefits and Application.
Main parameters of WHD1250 Fixed Rockbreaker Boom System:
Model No. | WHD1250 | |
Boom weight(without hammer) | kg | 12430 |
Max horizontal working radius | mm | 14470 |
Max.vertical working radius | mm | 12200 |
Min.vertical working radius | mm | 3470 |
Max.Height | mm | 9010 |

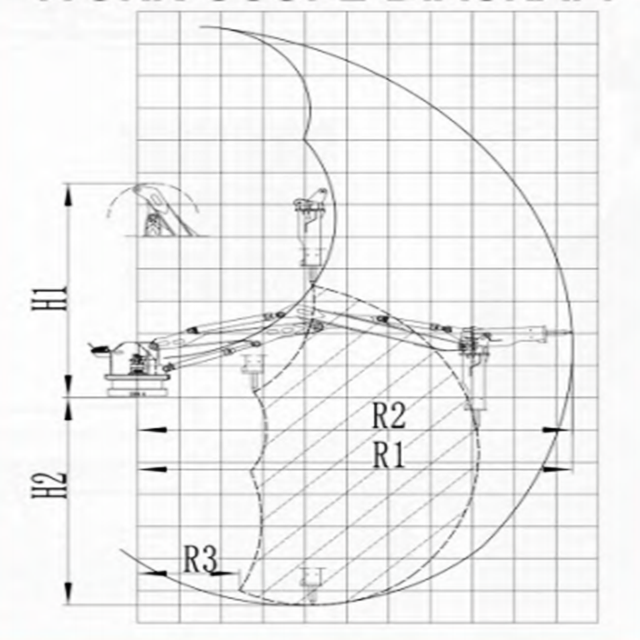

The Scope of Work Diagram of WHD1250 Fixed Rockbreaker Boom System:
The Features of WHD1250 Fixed Rockbreaker Boom System:
with diversified intelligent control methods, support video monitoring and remote control, remote control distance up to 10-20km. adopts modular design, can quickly adapt to the different needs of customers, can also be equipped with a variety of front-end tools, to achieve multi-functionality. In addition, it can work stably for a long time in harsh environments such as corrosion, explosion-proof and high altitude.
It adopts electro-hydraulic drive and is equipped with imported high-quality hydraulic crushing hammer with large crushing capacity. Smooth operation, can be in the complex working conditions of the site continuous operation, can effectively crush 400-1500 mm of large ores and other materials, to assist the main crusher efficient feeding.
The Benefits of WHD1250 Fixed Rockbreaker Boom System:
safe and reliable, equipped with high-performance shock absorbing system, which can reduce the damage of impact load on the whole machine and infrastructure. Energy-saving and environmentally friendly, motor-driven compared to traditional diesel equipment, energy costs reduced by more than 50%, and low noise of hydraulic vibration crushing. At the same time, high maintenance, failure rate compared with traditional diesel equipment to reduce 80%, can be a full year without downtime maintenance, reducing maintenance costs and time costs.
The Application of WHD1250 Fixed Rockbreaker Boom System:

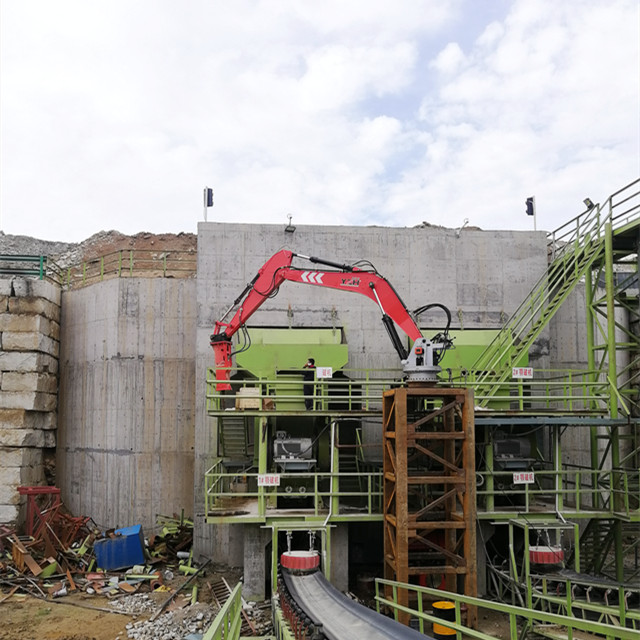

It can be installed in high mountain mines at an altitude of 3,700 meters, and the operator can operate it through remote video in the office below the mountain, and remotely control the mechanical arm to crush the large stone blocks jammed in the mouth of the grizzly screen and gyratory crusher, which effectively solves the clogging problem in the crushing process of the mines, and guarantees the smoothness of the production process.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
