WHA560
YZH
China Manufacturer Pedestal Boom System
As a core product of YZH, the WHA560 fixed mechanical arm has become an efficient crushing solution for global mining, sand and gravel aggregate, and metallurgy industries thanks to its cutting-edge technology, customized design, and outstanding performance. The following is an introduction to its features, advantages, and specific cases.
Main parameters of the WHC560 Pedestal Boom System:
Model No. | WHC560 | |
Boom weight(without hammer) | kg | 2058 |
Max.Horizontal Working radius | mm | 6710 |
Max.vertical working radius | mm | 5150 |
Min.vertical working radius | mm | 1260 |
Max.Height | mm | 4400 |

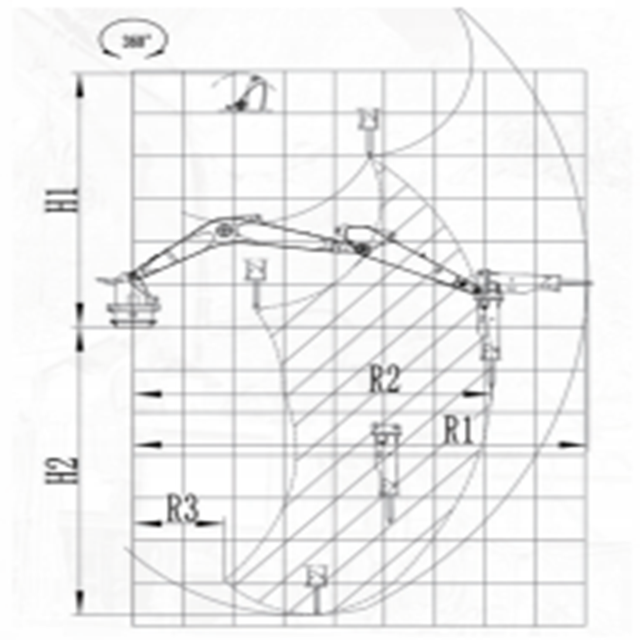

The Scope of Work Diagram of the WHC560 Pedestal Boom System:
The Features of the WHA560 Pedestal Boom System:
1. Electric-Hydraulic Integrated System
High-Efficiency Power: Utilizing an electric motor to drive the hydraulic pump station, energy consumption is only 1/6 of that of an excavator of equivalent power, with zero exhaust emissions, compliant with EU CE certification and green mining standards.
Superior crushing force: Combining lightweight structure with high-strength materials, it achieves a scientific balance between crushing force and self-weight, capable of processing granite and slag with a hardness of up to Mohs 7, with a crushing particle size of up to 1,500 mm.
2. Intelligent control system
Supports three control modes (cab operation, wireless remote control, central control room), particularly suitable for high-risk environments (such as chute screens and crusher feed openings);
3. Modular Multi-Functional Expansion
Through quick-change devices, it can be adapted to tools such as crushing hammers, hydraulic clamps, and rake buckets, enabling over 10 functions including crushing, blockage clearance, dismantling, and grabbing, to meet complex requirements such as slag cleaning in metallurgical plants and material sorting in ports.
4. Deeply customized services
Customize arm length, power configuration, and mounting bases according to customer conditions to suit open-pit mines, underground shafts, mobile crushing stations, and other scenarios, providing a turnkey solution of “mechanical arm + hydraulic station + electrical control system.”
The Application of WHC560 Pedestal Boom System:
1. Large State-Owned Enterprises and Mining Groups
China National Gold Group: Used for clearing blockages at the screen openings of underground chutes, replacing manual blasting, reducing downtime by 120 hours annually, and improving safety by 90%.
Ansteel Metallurgy Workshop: Used for cleaning slag from converters and steel ladles, with high-temperature resistant design enabling 24/7 continuous operation and reducing maintenance costs by 35%.
2. International Benchmark Projects
South Africa Mobile Crushing Plant: Installed at the feed inlet of the aggregate production line to process oversized basalt blocks, ensuring the feed size of the crusher remains stable at ≤500mm and increasing production capacity by 18%.
India TATA Group Quarry: Dual-machine coordination for the jaw crusher's dual feed openings, resolving clay blockage issues during the rainy season. Customer feedback: “Failure rate lower than European competitors.”
3. Special Scenario Innovation Applications
Zhejiang Huzhou DeNing Mining: A single robotic arm simultaneously serves two jaw crusher production lines, reducing the investment payback period to 14 months.
Russian Iron Ore Mine (contract signed in 2024): Customized anti-freeze hydraulic oil for -30°C extreme cold environments, showcased at the Moscow Mining Exhibition (Booth No.: Hall 3, Booth 6039), securing bulk orders from Russian mining companies.
