YZH WHC970 Rockbreaker System
YZH WHC970 Rockbreaker System is a high-performance equipment that integrates mechanical, electronic, and hydraulic technologies.
Main parameters of YZH WHC970 Rockbreaker System:
Model No. | WHC970 | |
Boom weight(without hammer) | KG | 8504 |

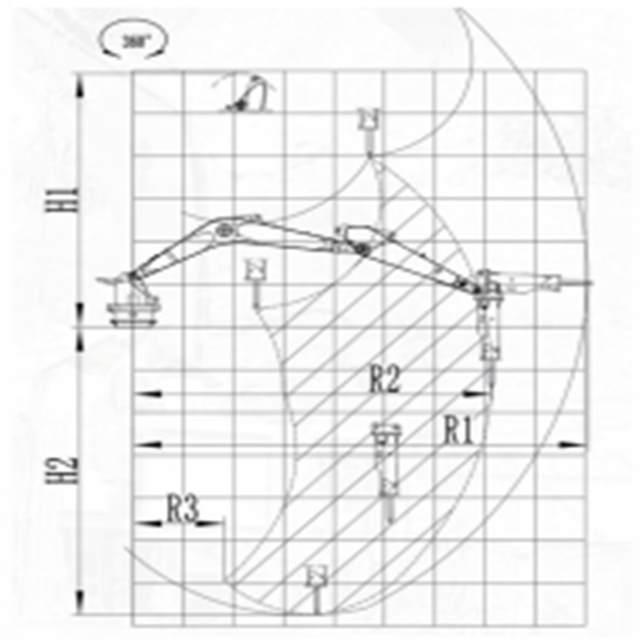

Max.Horizontal Working radius | MM | 11925 |
Max.vertical working radius | MM | 9605 |
Min.vertical working radius | MM | 2485 |
Max.Height | MM | 6858 |
The Scope of YZH WHC970 Rockbreaker System:
The Features of YZH WHC970 Rockbreaker System:
·Sturdy structure and powerful power: The main structural components of the equipment are welded with high-strength manganese steel, which can withstand strong impacts and loads. The core power comes from a hydraulic station with a power range of 30-75kw, which drives the hydraulic breaker to complete strong crushing.
·Flexible control and intelligent control: Provides two modes of cabin control and remote control, with a remote control distance of up to 10-20km. Some models are also equipped with video surveillance systems to achieve remote visual operation.
·Wide working range and multifunctional accessories: The horizontal extension range of the working arm is usually between 4880-20400mm, and the swing angle can reach 170 ° to 360 °. By quickly replacing the connector, various hydraulic tool heads such as breaking hammers, breaking pliers, hydraulic shears, and digging buckets can be equipped, achieving multi-purpose use of one machine.
·Strong environmental adaptability: Adopting a sealed structure and special design (such as optional high and low temperature automatic temperature control device), it can work stably in harsh environments such as high dust, low temperature, high altitude, underground mines, and high temperature in steel plants.
The Benefits of YZH WHC970 Rockbreaker System:
·High efficiency, energy saving, and good economy: Using electric motor drive, the energy consumption cost is said to be reduced by more than 50% compared to traditional diesel equipment, and the hourly electricity cost is about 10-20 yuan.
·Safe, reliable, and easy to maintain: Remote control operation keeps workers away from dangerous areas. The equipment adopts a high-performance shock absorption system to reduce impact loads. The core components are selected from international brands, which reduces the failure rate by more than 80% compared to traditional equipment.
·High degree of intelligence: adopting a flexible control system, precise fixed-point positioning can be achieved. Equipped with a high protection level controller, supporting multi parameter fusion.
·The environmental advantages are obvious: electric drive achieves zero on-site emissions, and the equipment operates with low noise.
The Application of YZH WHC970 Rockbreaker System:
YZH WHC970 Rockbreaker System is widely used in multiple industrial fields:
·Mining field: Used for crushing machine feed ports, chute heads, and grid screens in open-pit or underground mines, to handle large ore blockages.
·Metallurgical casting: used for shell making, brick removal, unpacking treatment of various mobile steel ladles, as well as slag cleaning of metallurgical furnaces.
·Sand and gravel aggregates and building materials: Installed next to the crushing station in the sand and gravel aggregate yard, processing large stones to ensure smooth production.
·Other industrial environments, such as cement plants, chemical plants, power plants, ports, and docks, require the handling of large materials.
In terms of typical customer cases, the mechanical arm equipment of YZH brand has been promoted and applied in dozens of large state-owned enterprises such as China National Chemical Corporation, China Gold Group, Jinchuan Group, and Ansteel Group.
