WHC970
YZH

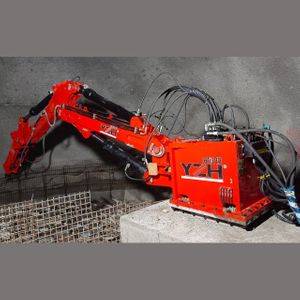

YZH Intelligent Stationary Hydraulic Rock Breaker Boom System is a fixed‑mounted, electro‑hydraulic integrated breaking system specially developed for aggregate processing, mining, quarrying and crushing plant applications.

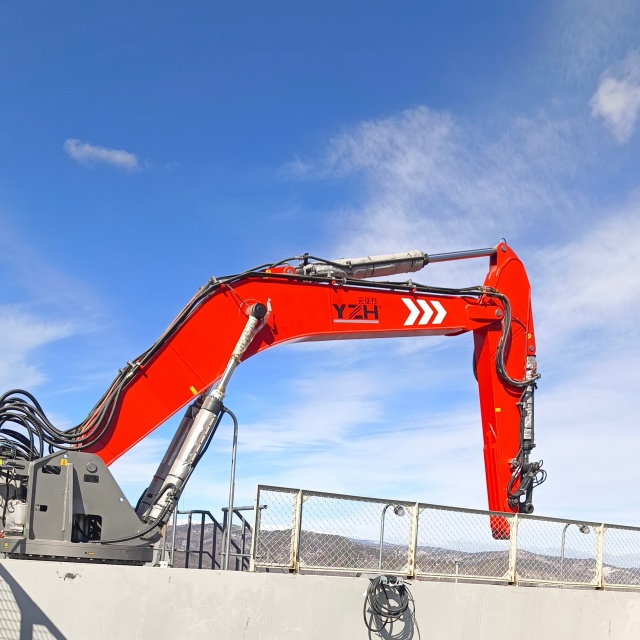

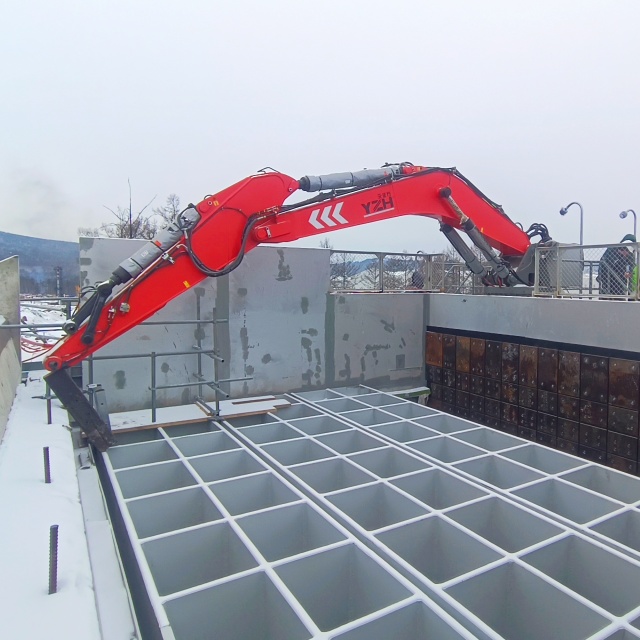

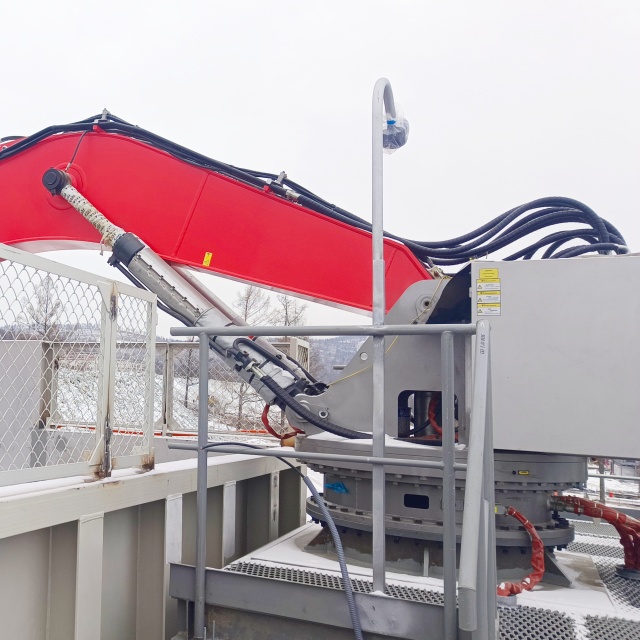

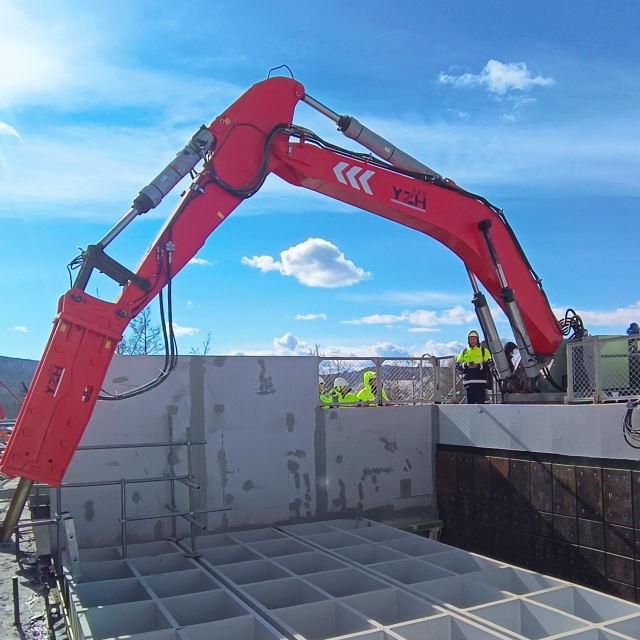

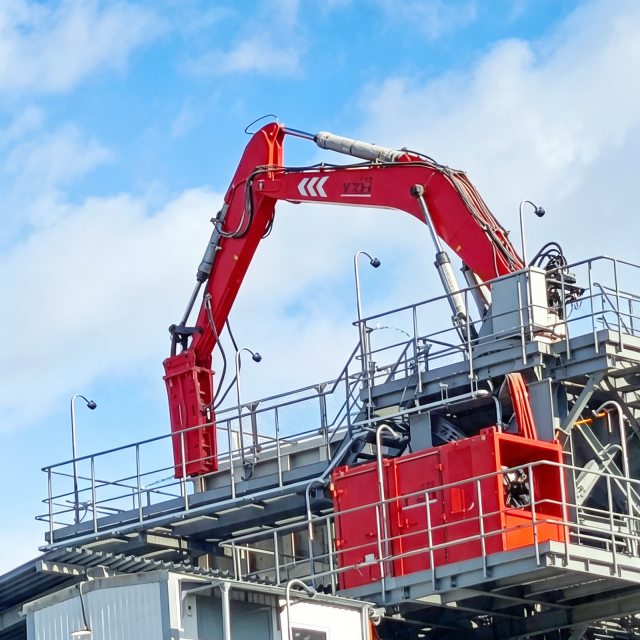

The system is installed on a concrete foundation and covers the feed opening, grizzly, chute and material silo areas through a multi‑degree‑of‑freedom boom mechanism. It is designed to break oversized rock boulders, clear blockages and replace manual breaking or secondary blasting, helping customers improve site safety, reduce downtime and increase crushing plant efficiency.
Main parameters
Model No. | WHC970 | |
Boom Weight (without hammer) | kg | 8432 |
Max. Horizontal working radius | mm | 11925 |
Max. Vertical working radius | mm | 9605 |
Min. Vertical working radius | mm | 2485 |
Max. Height | mm | 6858 |
Max. Working Depth | mm | 8156 |
Rotation | ° | 360 |
Hydraulic hammer model | YZH1350/YZH1400 | |
Power of Hydraulic Power Unit | kw | 55/75/90 |
Core Features
The main boom, pedestal and structural frame are manufactured with high‑strength steel plates and optimized through finite element analysis. This ensures high rigidity, fatigue resistance and long‑term stable operation under continuous heavy‑load conditions.
The system can be equipped with wireless remote control, video monitoring and multi‑mode operation functions. Operators can complete rock breaking and blockage clearing from a safer distance, reducing direct exposure to high‑risk working areas.

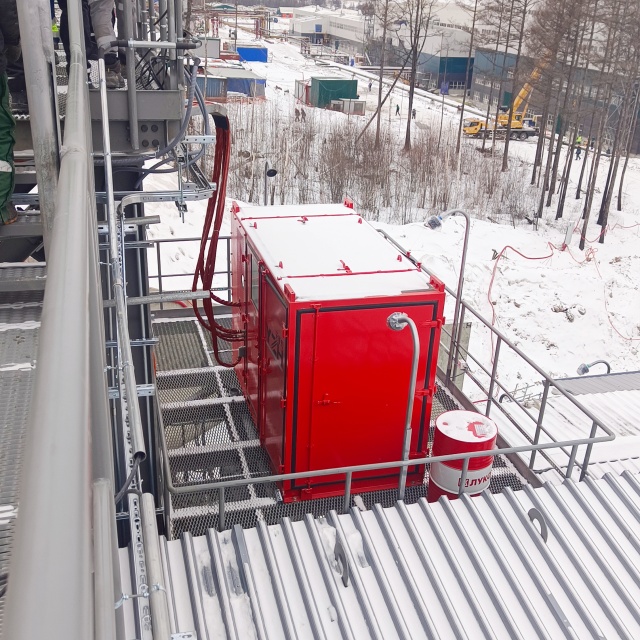

The stationary hydraulic rock breaker boom system is matched with an independent hydraulic power unit and a compatible hydraulic hammer. The flow, pressure and power output are systematically matched to achieve stable impact force, low failure rate and efficient breaking performance.
The boom system provides large horizontal and vertical working ranges, covering multiple breaking points around the crusher feed opening. It can handle oversized rock blockages that are difficult to reach by manual operation or mobile equipment.
We offer customized solutions based on actual site conditions, installation space, material hardness, breaking requirements and automation level. Customers can select different boom lengths, working radii, rotation ranges, hammer models and power unit configurations.
Application Scenarios
Aggregate Processing Plants
Mines and Quarries
Cement Plants
Metallurgical Plants
Why choose YZH?
YZH focuses on the design and manufacturing of heavy‑duty hydraulic breaking equipment for mining and aggregate industries. With rich field experience, reliable structural design and flexible customization capabilities, we provide customers with integrated solutions from equipment selection, structural design, hydraulic matching to after‑sales service.
We offer:
Customized design according to site drawings
Professional technical consultation
Complete equipment configuration
Reliable after‑sales support
Global spare parts supply
