WHEN1200
YZH

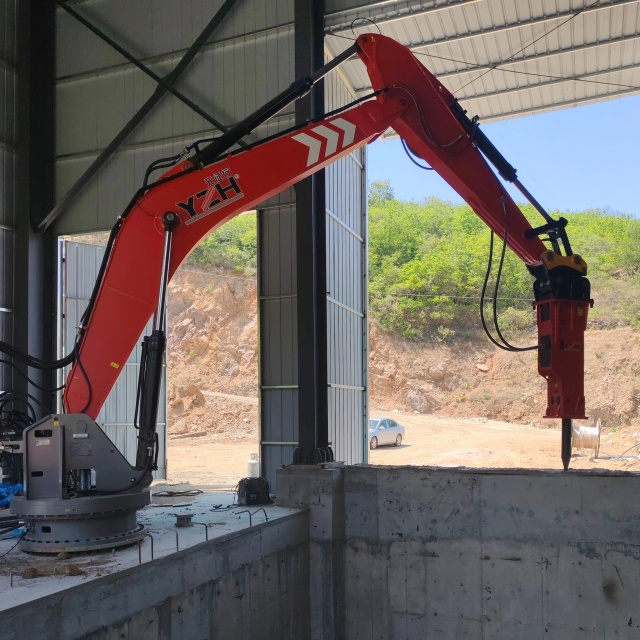

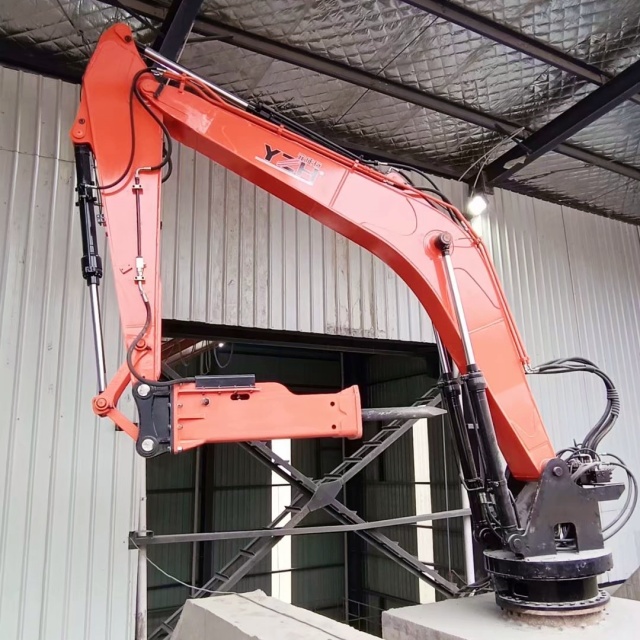

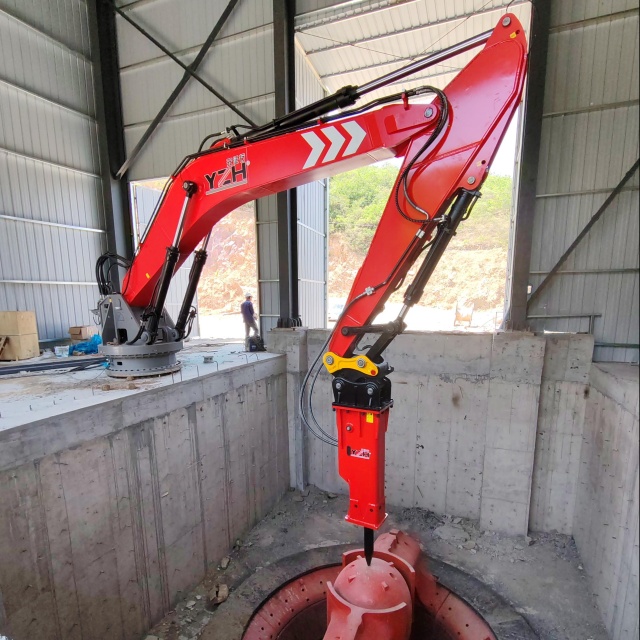

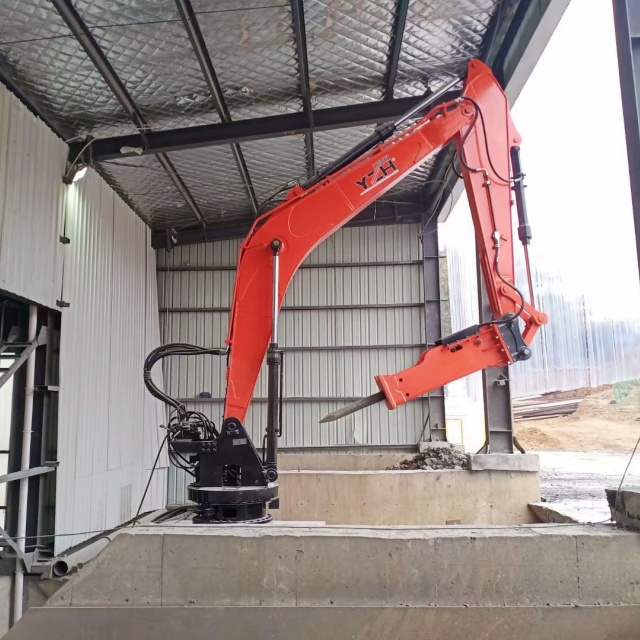

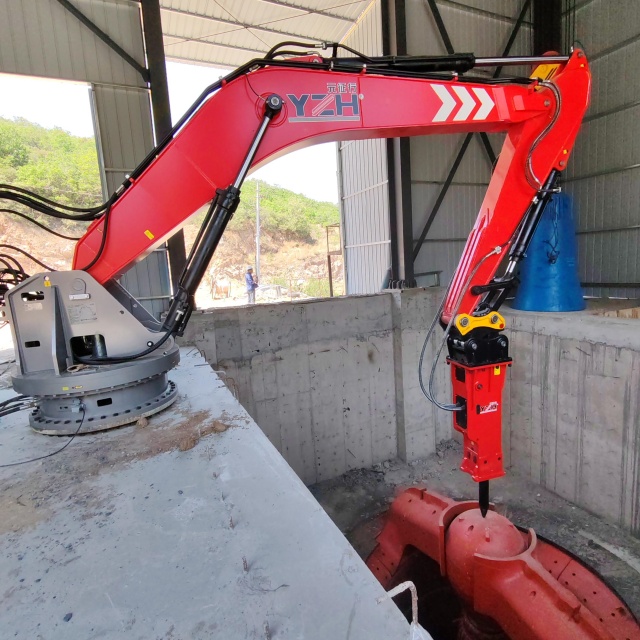

Main parameters of YZH WHEN1200 Stationary Pedestal Hydraulic Rockbreaker Boom System：
Model No. | WHEN1200 | |
Boom weight(without hammer) | kg | 16637 |
Max.Horizontal Working radius | mm | 14150 |
Max.vertical working radius | mm | 11784 |
Min.vertical working radius | mm | 2170 |
Max.Height | mm | 8400 |
Max. Working Depth | mm | 10295 |
Rotation | ° | 360 |
The Features of YZH WHEN1200 Stationary Pedestal Rockbreaker Boom：

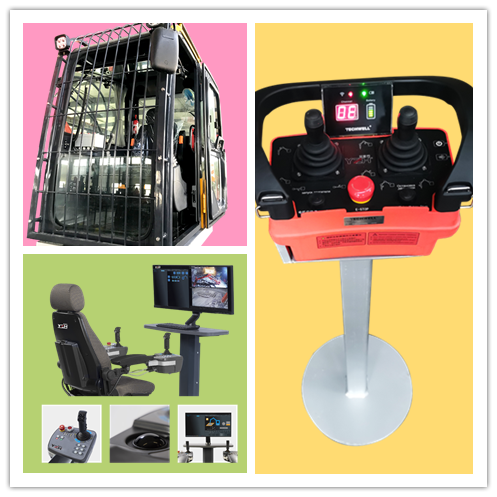

Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote control, and fiber optic + 5G remote video monitoring with a control range of 10-20km. Paired with a high-performance controller. It enables precise positioning and flexible control, offering both wired and wireless dual-mode operation.
Robust and Durable Structure: Features high-strength rectangular steel boom beams, large-diameter cylinders, and reinforced pins. The slewing motor incorporates buffer braking. Equipped with a high-performance shock absorption system, core components utilize international brands, structural parts undergo strength verification and aging treatment, and welding processes are mature.

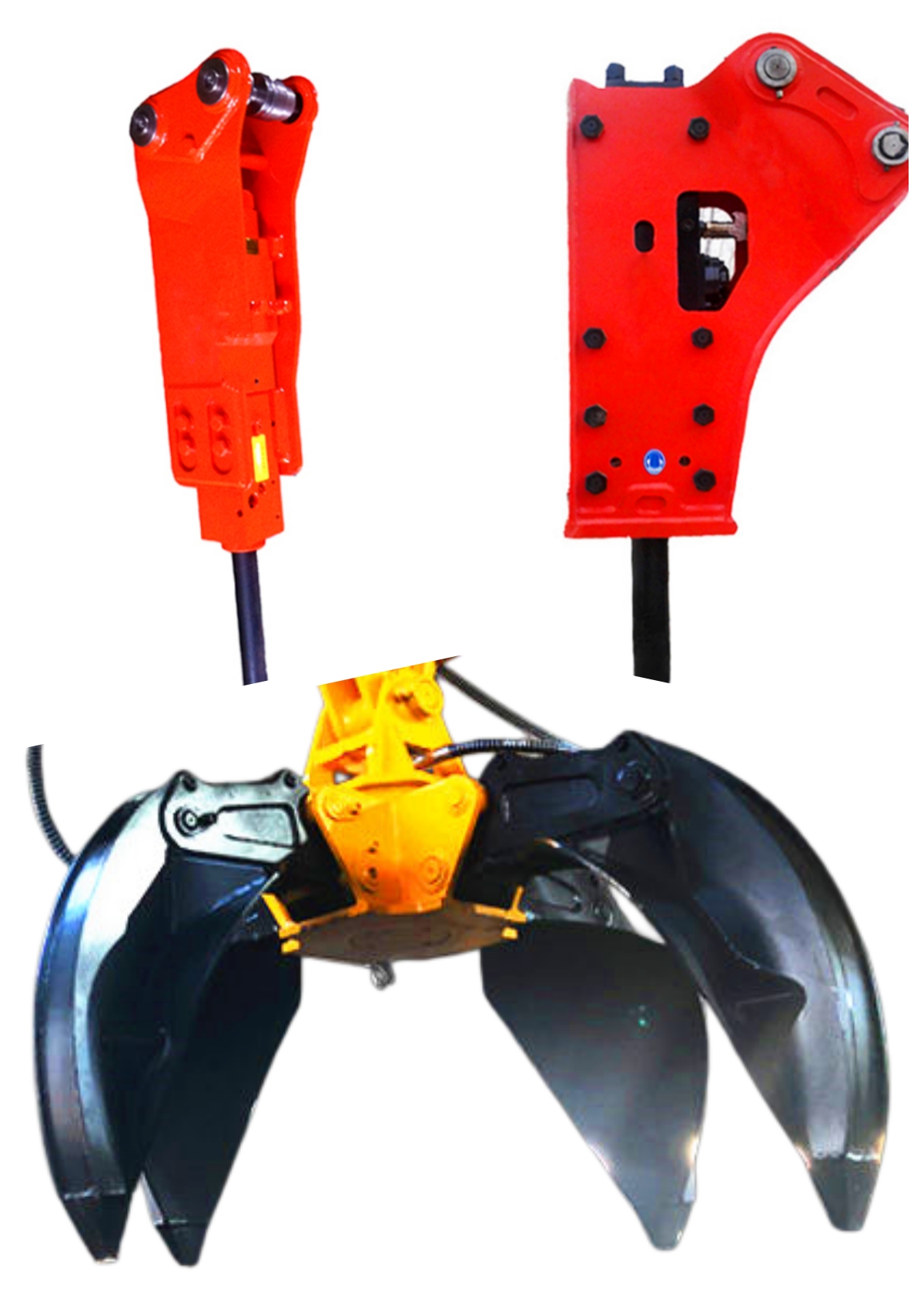

High Adaptability: Modular design allows interchangeable attachments like breakers and grabs. Suitable for open-pit/underground mining, metallurgy, cement, and other applications. Capable of long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes. Wide horizontal working range with selectable rotation angles.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
