| Quantity: | |
|---|---|
WHD1250
YZH
YZH WHD1250 Breaker Boom System
YZH WHD1250 Breaker Boom System specializes in secondary material crushing for mining and similar applications. Below is a detailed introduction covering its features, Benefits, and Application:
Main parameters of YZH WHD1250 Breaker Boom System：
Model No. | ||
Boom weight(without hammer) | kg | 12430 |
Max.Horizontal Working radius | mm | 14470 |
Max.vertical working radius | mm | 12200 |
Min.vertical working radius | mm | 3470 |
Max.Height | mm | 9010 |

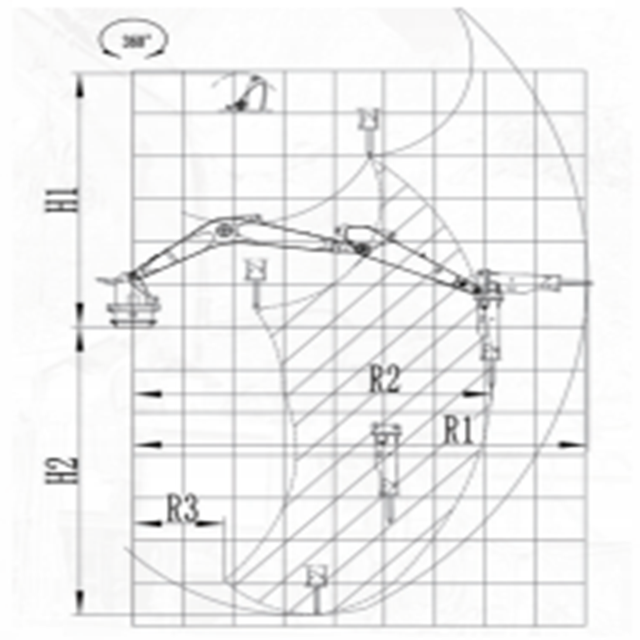

The Scope of Work Diagram of YZH WHD1250 Breaker Boom System:
The Features of YZH WHD1250 Breaker Boom System:
Intelligent and Wide-Range Control: Supports video monitoring + remote control with a range of 10–20 km, enabling flexible operation and precise positioning. Capable of 360° rotation with a maximum horizontal working radius of 14,470 mm and vertical radius of 12,200 mm, ensuring comprehensive coverage. ◦ Durable and Adaptable Structure: The base utilizes manganese steel for high load-bearing capacity, while attachments employ premium special steel for superior wear resistance. A high-performance shock absorption system minimizes impact damage to the entire machine. Modular design with multiple front-end tools enables functions like crushing and grabbing, ensuring long-term stable operation in harsh environments such as high altitudes, corrosive conditions, and explosion-proof zones. ◦ Professional Configuration for Stable Efficiency: Equipped with a high-quality hydraulic breaker featuring core components from international brands. The electric-hydraulic drive mode supports uninterrupted operation while enabling quiet operation through hydraulic vibration crushing.
The Benefits of YZH WHD1250 Breaker Boom System:
High Safety Factor: Remote operation keeps personnel away from hazardous areas like the breaker mouth, completely eliminating safety risks associated with manual blockage clearance. High-protection controllers further enhance operational safety. ◦ Low Operating Costs: Energy consumption is only 1/6th of equivalent-power excavators, reducing energy costs by over 60% compared to traditional diesel equipment. Failure rates are 85% lower than conventional diesel units, maintenance is simplified, and wear on paired crushers is minimized. ◦ Significant Production Boost: Rapidly resolves crusher inlet blockages, drastically reducing production line downtime. Increases primary crusher output by 20%, helping enterprises boost capacity and profits.
The Application of YZH WHD1250 Breaker Boom System:

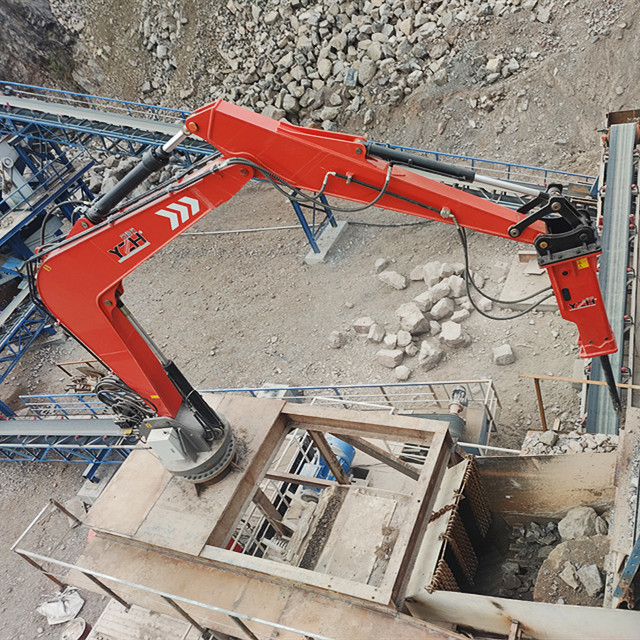

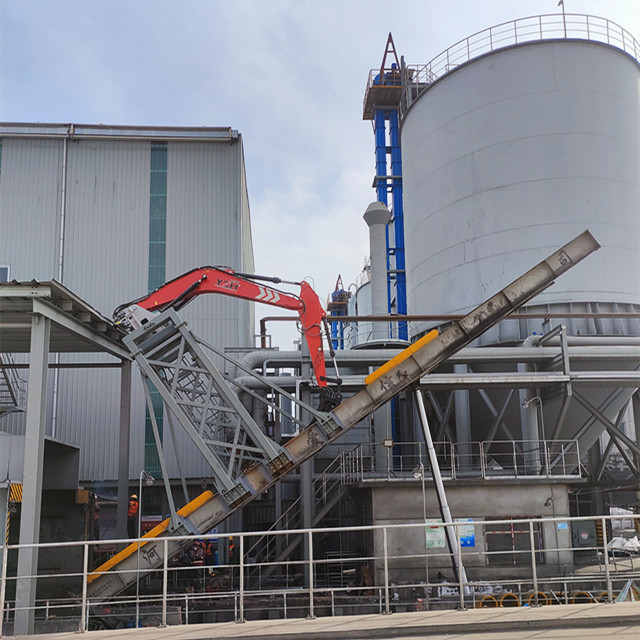

Red Lion Cement Group Customization: The group has repeatedly customized Yuan Zhengxing fixed excavator arms to address blockages at crusher feed openings during cement production. The compact arm design adapts to plant layouts, performing operations like blockage crushing and material retrieval via multiple attachments. This reduces production downtime while eliminating safety risks associated with manual intervention, ensuring continuous and efficient cement production. ◦ High-Altitude Mining Application: At a 3,700-meter-high mountain mine, the WHD1250 fixed robotic arm was deployed for secondary crushing of large ore blocks at the screen opening. Operators remotely controlled the equipment via video feed from a base-level office, precisely breaking up obstructing rocks. This solution overcame the challenges and risks of manual operations at high altitudes while ensuring continuous operation of the mine's crushing production line.
