WHD1350
YZH

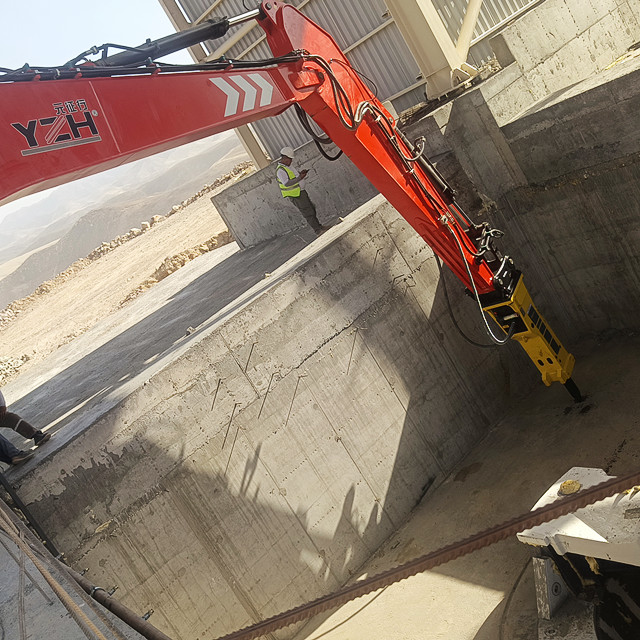

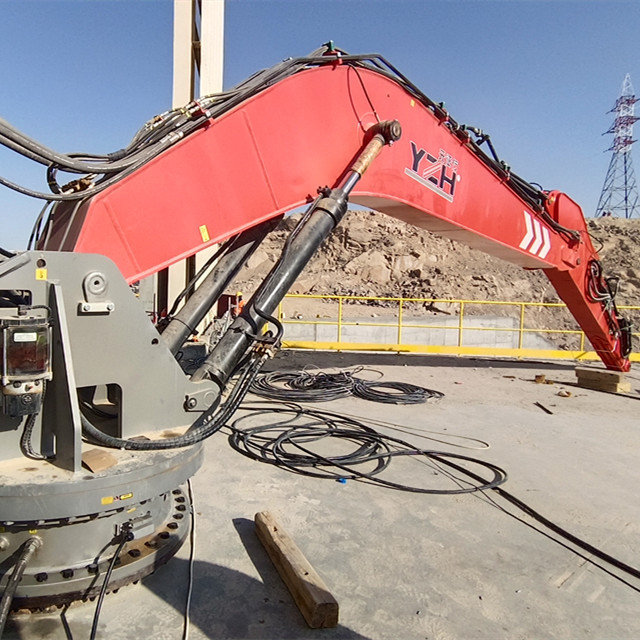

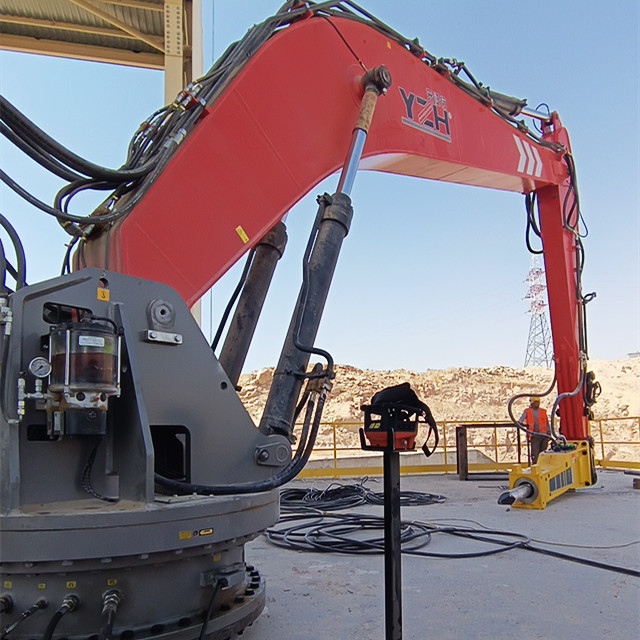

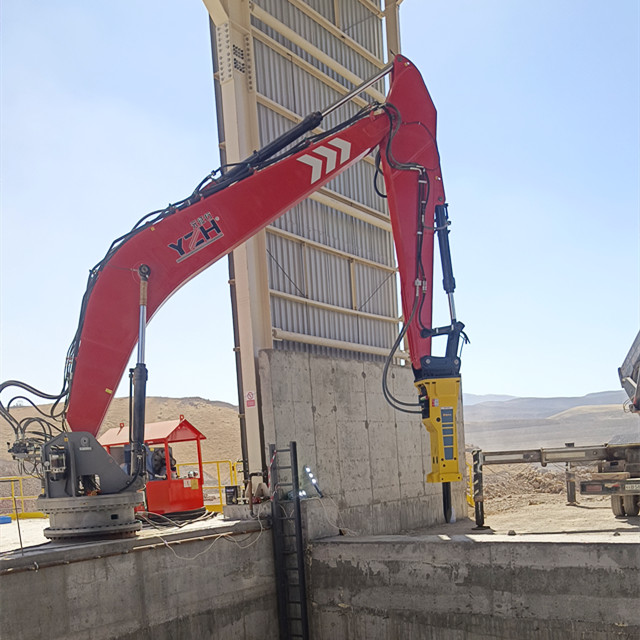

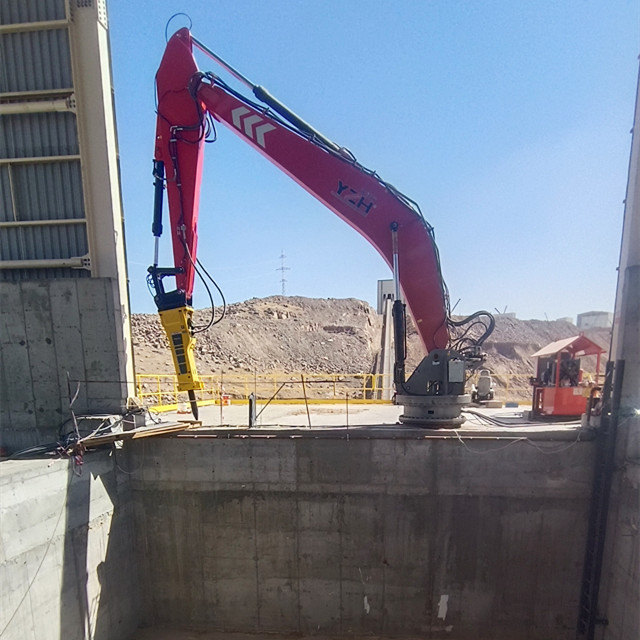

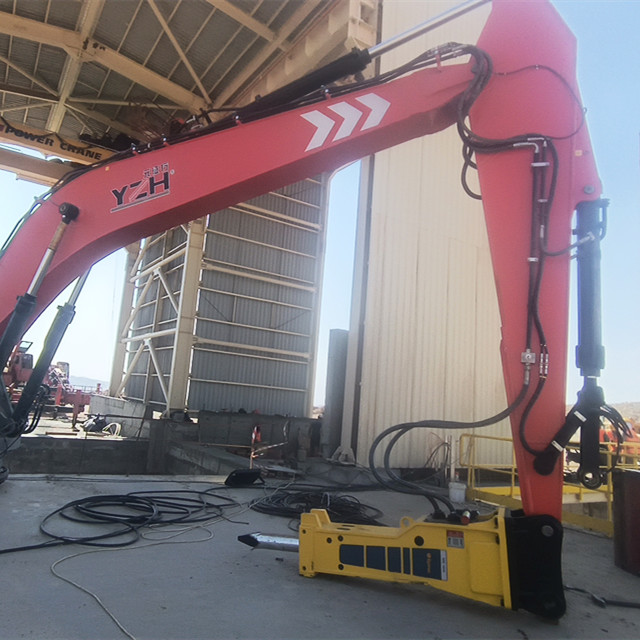

WHD1350 Pedestal Breaker Boom System
The WHD1350 from YZH is presumed to be part of its W-series Pedestal Breaker Boom System, primarily designed for secondary crushing operations in mining and similar scenarios. Below is a detailed introduction covering its parameters, features, benefit, and application :
Main parameters of WHD1350 Pedestal Breaker Boom System:
Model No. | WHD1350 | |
Boom weight(without hammer) | kg | 13230 |
Max.Horizontal Working radius | mm | 15350 |
Max.vertical working radius | mm | 13080 |
Min.vertical working radius | mm | 3320 |
Max.Height | mm | 9010 |

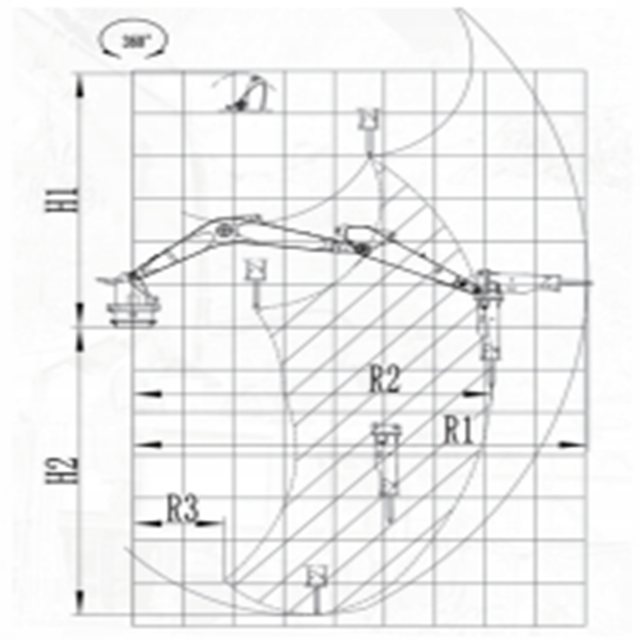

The Scope of Work Diagram of WHD1350 Pedestal Breaker Boom System:
The Features of WHD1350 Pedestal Breaker Boom System:
Outstanding Intelligent Control: Supports video monitoring + remote control with a range of 10–20 km. Paired with a high-performance controller, it enables multi-parameter integration and flexible control, allowing precise positioning and operation. It can also switch to cab operation to adapt to different work scenarios.
Robust Structure and Adaptability: Features a sturdy rectangular steel boom beam structure, larger-diameter cylinders, reinforced pins, and a swivel motor with cushioning brakes. Its modular design accommodates various front-end tools like breakers and buckets, enabling long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes.
Stable and Adaptable for High-Intensity Operations: Equipped with a high-performance shock absorption system that minimizes impact damage to the machine and foundation. Combined with a newly simulated and optimized layout, it offers high safety margins to meet the demands of continuous crushing operations in mining. Core components utilize international brands, further ensuring operational stability.
The Benefits of WHD1350 Pedestal Breaker Boom System:
High Efficiency, Low Consumption: Equipped with a high-quality hydraulic breaker, it rapidly resolves material jams in crusher screens or discharge ports. Motor-driven hydraulic vibration crushing reduces energy consumption by over 60% compared to traditional diesel equipment, while fault rates decrease by 85%, significantly lowering maintenance costs.
Safety and Environmental Protection: Remote operation keeps personnel away from hazardous crushing zones, eliminating manual jam clearance risks. The system operates quietly with zero pollutant emissions, aligning with current environmental policies in mining and related industries.
Cost-Effectiveness and Premium Service: Compared to excavators of equivalent power, fuel consumption costs are only 1/6th, while production line output increases by 20%. The manufacturer offers turnkey solutions including robotic arms and electronic control systems, supported by a nationwide and international service network providing installation, commissioning, maintenance, and comprehensive after-sales support.
The Application of WHD1350 Pedestal Breaker Boom System:
Large-scale State-Owned Enterprise Deployment Cases: This robotic arm has been adopted by dozens of major state-owned enterprises including China Nonferrous Metal Mining Group, China National Gold Group, Jinchuan Group, and Ansteel Group. In mining and metallurgical workshops of these enterprises, the robotic arm effectively addresses operational challenges in ore crushing and metallurgical furnace brick removal. It enhances production efficiency while reducing labor and energy costs, driving the standardization and intelligent transformation of production processes.
