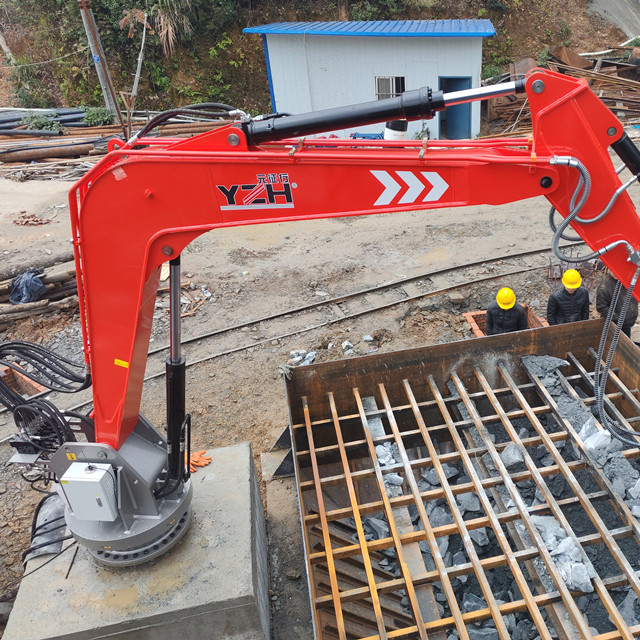

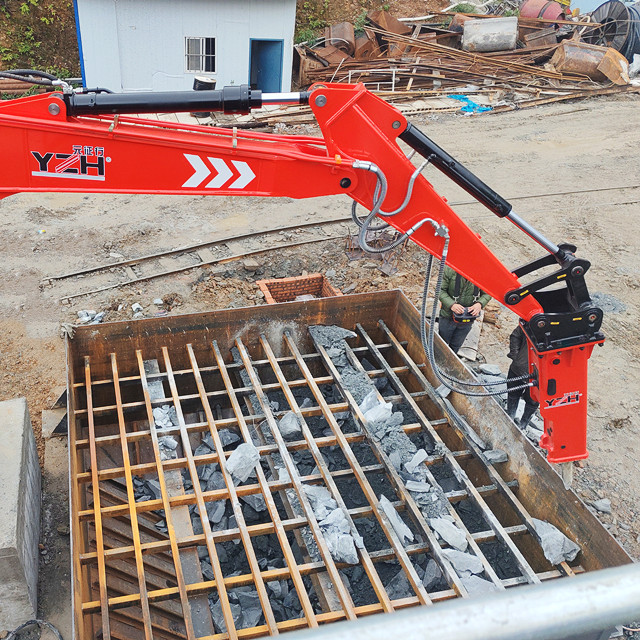

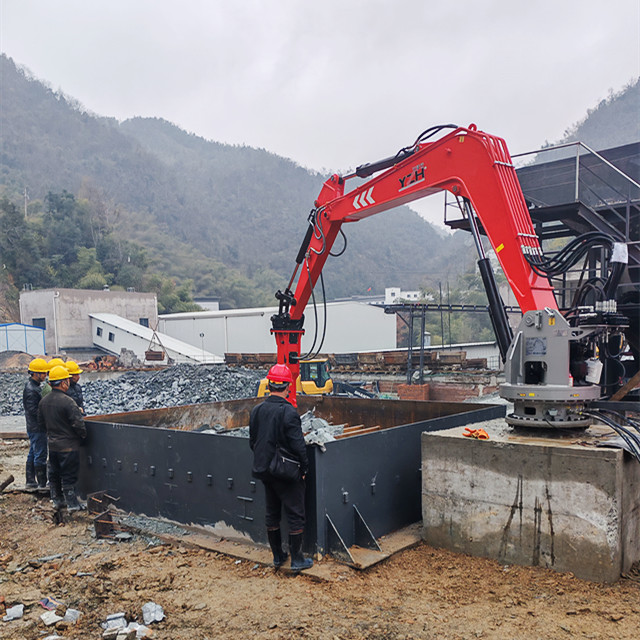

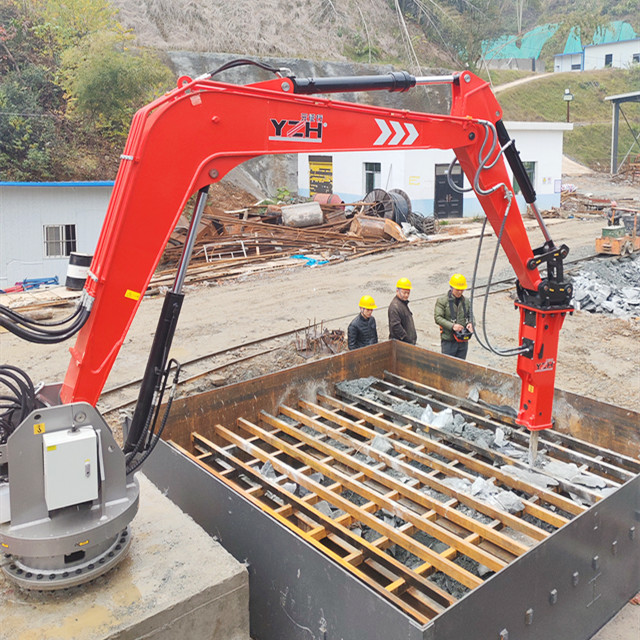

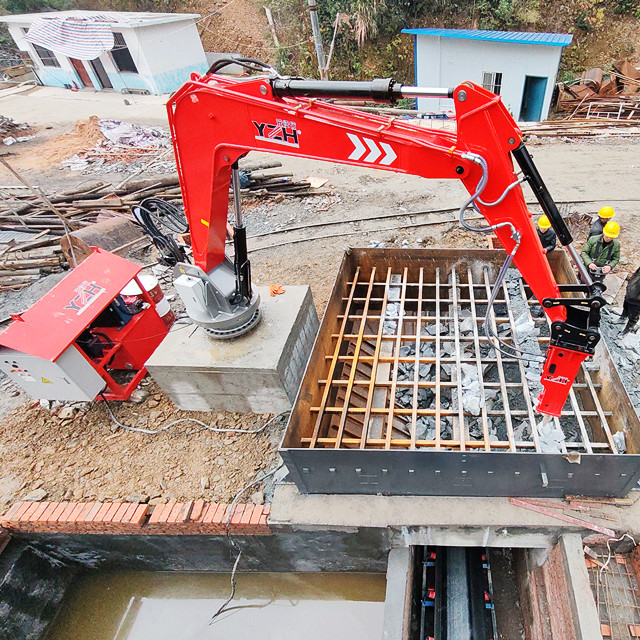

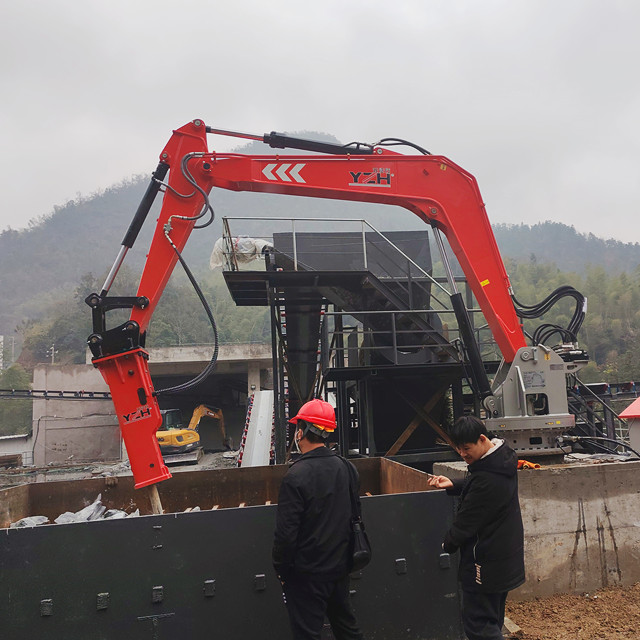

YZH WHEN1510 Stationary Pedestal Rockbreaker Boom
Below is a detailed introduction to the YZH WHEN1500 fixed hydraulic demolition arm, covering its features, advantages, and case studies:
Main parameters of YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
Model No. | WHEN1510 | |
Boom weight(without hammer) | kg | 17500 |
Max.Horizontal Working radius | mm | 17250 |
Max.vertical working radius | mm | 14640 |
Min.vertical working radius | mm | 940 |
Max.Height | mm | 9300 |
The Features of YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
Intelligent Multi-Mode Control: Supports cab operation, wireless/wired remote control, and fiber optic + 5G remote video monitoring with a control range of 10-20km. Paired with a high-performance controller, it enables precise positioning and flexible control, offering both wired and wireless dual-mode operation.
Robust and Durable Structure: Features high-strength rectangular steel boom beams, large-diameter cylinders, and reinforced pins. The slewing motor incorporates buffer braking. Equipped with a high-performance shock absorption system, core components utilize international brands, structural parts undergo strength verification and aging treatment, and welding processes are mature.
High Adaptability: Modular design allows interchangeable attachments like breakers and grabs. Suitable for open-pit/underground mining, metallurgy, cement, and other applications. Capable of long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes. Wide horizontal working range with selectable rotation angles.
Optimized Parameters: Overall weight approximately 1500-1550kg. Hydraulic hammer rod diameter compatible with mainstream specifications. Selectable rotation angles of 170° or 360°. Compatible with 880V motor drive. High protection rating.
The Benefits of YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
Safety and Environmental Protection: Remote operation keeps personnel away from hazardous zones, eliminating manual blockage clearance risks. Electric drive produces zero exhaust emissions, reduces energy consumption by over 60% compared to traditional diesel equipment, and operates at low noise levels.
High Efficiency & Low Consumption: Reduces production line downtime by 5%-20%, boosts crusher output by 20%. Operating costs are only 1/6th of fuel expenses for equivalent-power excavators, with failure rates reduced by 85% compared to traditional diesel equipment and low maintenance expenses.
Superior Quality & After-Sales Support: Certified with ISO9001 and EU CE standards, offering turnkey solutions, 24/7 online customer service, and support for customized requirements.
The Application of YZH WHEN1510 Stationary Pedestal Rockbreaker Boom：
1. Gold Mine of China Gold Group: Used for secondary crushing at the jaw crusher feed inlet, eliminating material jams and manual clearance risks. Production line downtime reduced by 15%, primary crushing output increased by 18%, and energy costs cut by 65%.
2. Ansteel Group Metallurgical Plant: Adapted for high-temperature slag crushing in ladle furnaces. Remote operation prevents heat exposure hazards. Modular attachment replacement enables both crushing and grabbing functions. Production line failure rate decreased by 80%, maintenance costs reduced by 70%.
3. Russian Open-Pit Quarry: Used for crushing oversized ore at screen openings, it operates stably in low-temperature, high-dust environments. With a remote control range of 15km, the equipment runs continuously without failures, delivering over 50% higher overall efficiency than traditional equipment.
