BB350
YZH

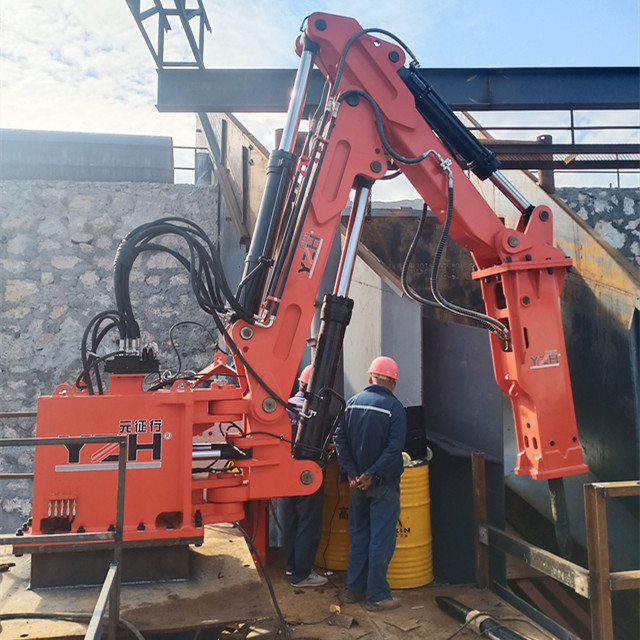

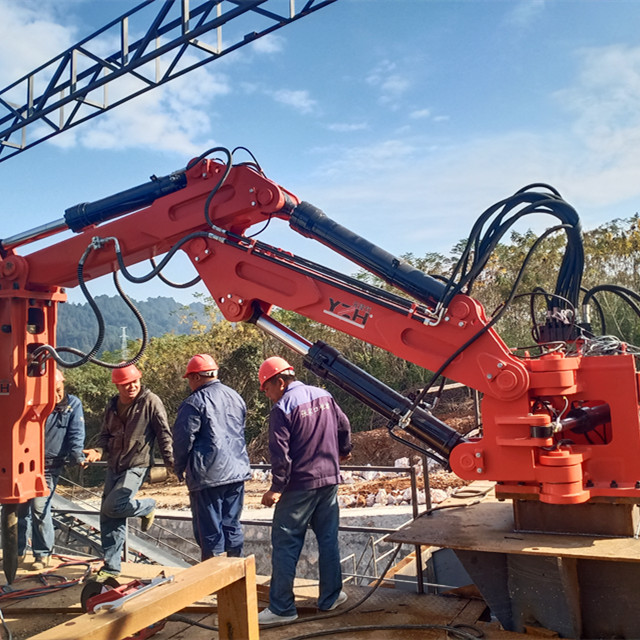

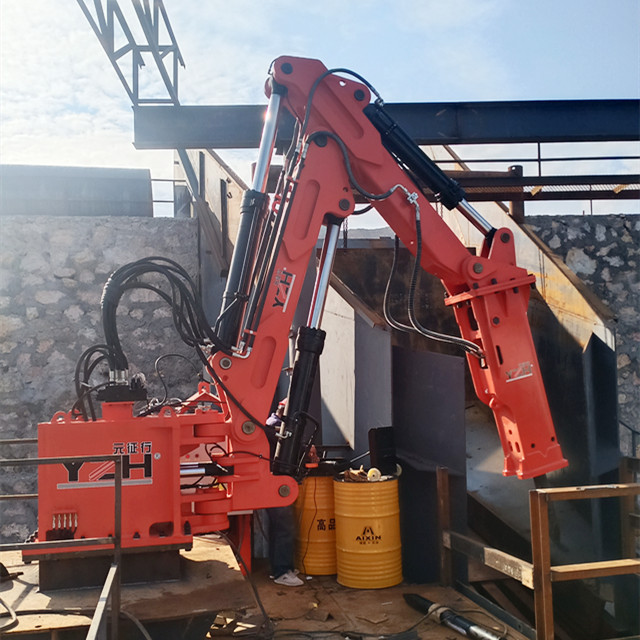

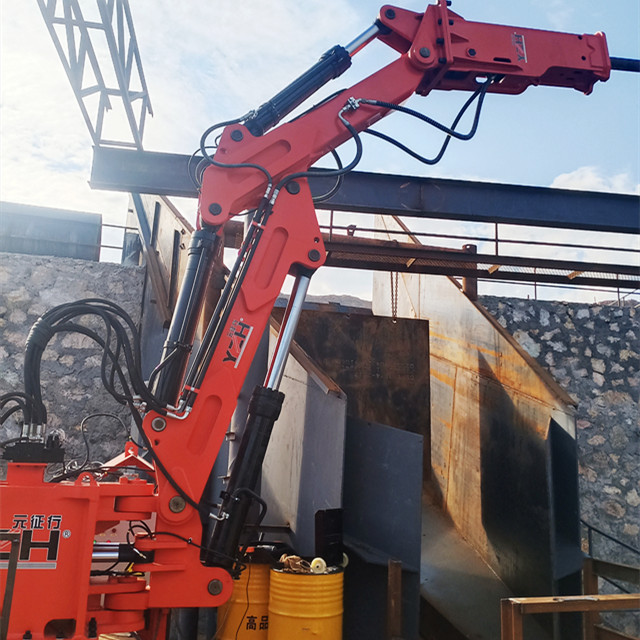

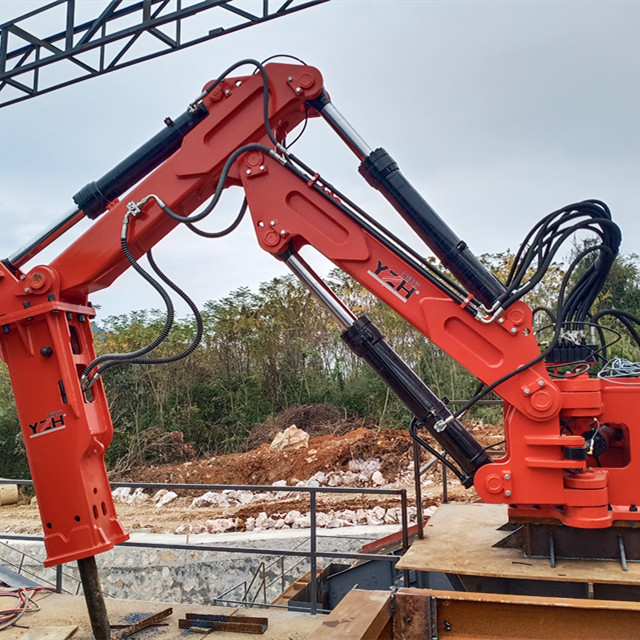

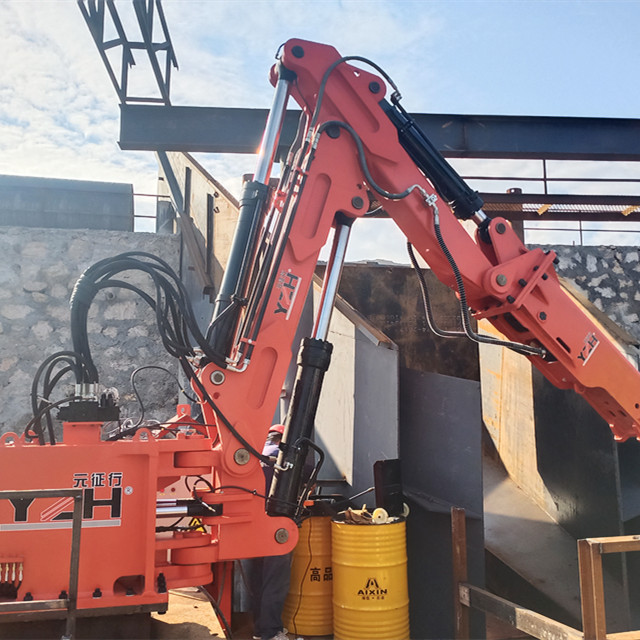

YZH Stationary Type Pedestal Rock Breaker Boom Systems
YZH builds stationary type pedestal rock breaker boom systems, with leading technology, scene adaptation, value empowerment as the core, to provide intelligent solutions for mining, metallurgy, ports and other heavy industry scenarios.
First, innovative design: redefine the technical boundaries of robotic arms
Military-grade materials: adopting high-carbon manganese steel frame and multi-layer buffer structure, impact resistance is enhanced by more than 60%, adapting to extreme working conditions from -30℃ to 120℃, with a service life of more than 100,000 hours.
Intelligent control center:
Three-end interconnected control: cab panel, wireless remote control (20km coverage), and mobile App seamlessly switch, equipped with millimeter-level positioning system, error <0.5mm.
German Power Module: integrated German Bosch Rexroth hydraulic system, energy consumption is 55% lower than traditional equipment, and power response speed is 30% higher.
Modular ecology:
Flexible assembling: hydraulic pump station, telescopic arm, rotating base and other modules support rapid disassembly and reorganization, shortening the deployment time to within 1 day.
Hundred-variable function library: Compatible with 12 kinds of attachments (crushing hammer, electromagnetic disk, hydraulic shear, etc.) through quick-change interface, switching task mode in 5 minutes.
Technical Parameters
Model number is BB350, working arm weight without hammer 3168kg, max working radius 6000mm, max vertical working radius 3950mm, min vertical working radius 1860mm, max height 10740mm, max working depth 17040mm, swinging arm angle 360 degrees.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
