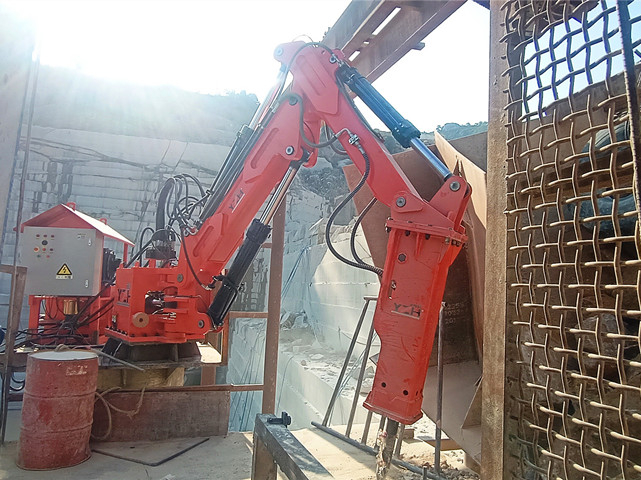

Pedestal Booms

Pedestal booms are extensively used in industry for repetitive materials movement tasks. They typically occupy little floor space, are cost-effective, and enhance operational efficiency.
Quantity:
  • B
  • YZH

YZH supplies Rock Drill with a range of Pedestal Booms Rockbreaker Systems suited to different breaking applications, such as recycling, aggregates, and light-high rock breaking. A YZH pedestal booms Rockbreaker System can increase your quarry’s production by up to 20% while making your work environment a much safer place.


Gyratory Crusher Rockbreaker Applications

Big jobs need big booms and breakers. YZH’s wide range of gyratory booms allow full breaker coverage within the rock box and mouth of the Crusher. YZH’s complete line of large hammers are designed specifically for gyratories to quickly eliminate any bridging or clogging, restoring consistent material flow to the crusher.


The gyratory crusher is the mainstay of medium to large duty crushing plants. Typically material is brought to the crusher by large haulage trucks and dumped into a rock box. The gyratory crusher is located at the bottom of the rock box. Material is crushed between the eccentrically mounted rotating crushing cone and the fixed, tapered crushing throat.


The Rockbreaker is typically mounted in-line with the upper support of the rotating cone called the spider. This provides superior maneuverability of the Rockbreaker within the gyratory throat. The boom is typically sized to allow full range of motion over the working range of the rock box. The reach should be deep enough to allow the breaker to enter the gyratory for material breaking and concave removal applications.


Stationary Rockbreaker Applications

Jaw crushers are typically used in many medium duty primary crushing applications. A fixed jaw plate opposite and moving jaw plate size the material through as it passes from the top to the bottom of the crusher. The jaw crusher is typically fed from a rock box by a vibrating feeder.

A rock breaker should be positioned to assist with raking rocks into the crusher, reduce oversize, and to be able to reach into the crusher to assist with processing and clearing jams.

ROCKBREAKERPedestal Rock Breaker Boom SystemStationary Rockbreaker Boom SystemRockbreaker Boom SystemsBreaker BoomsROCKBREAKER BOOM SYSTEMpedestal rockbreaker boom systempedestal boom systems

  +86 534 5987029

  +86 15610128027

  yzh@breakerboomsystem.com

  2449886259

  sherry88081

  +86 15610128027

YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
