Hydraulic Manipulators

Hydraulic Manipulators suited to different breaking applications, such as recycling, aggregates, and light-high rock breaking.
Availability:
Quantity:
  • BH
  • YZH

Hydraulic Manipulators

MANIPULATORS WITH BOOMS FOR CRUSHING OVERSIZES

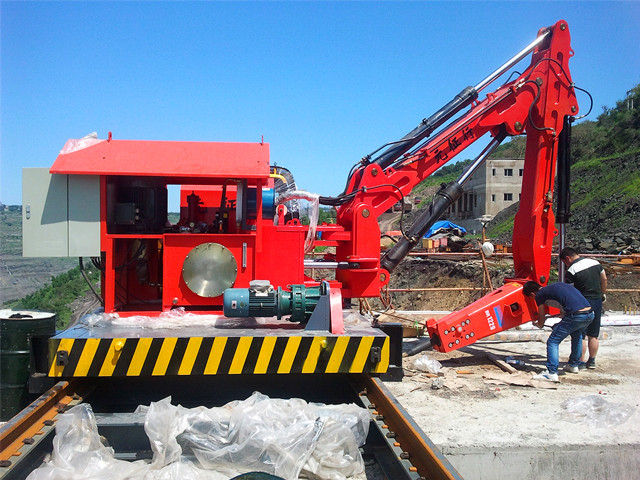

YZH hydraulic manipulators are offered in both stationary and mobile versions. They significantly increase safety of operating the first grade crushers and reduce downtime caused by blocking the crusher with material. Stationary manipulators allow attaching booms of all brands between 150 and 1000 kg of weight. Machines can be equipped with manual or remote steering. The company also produces pressure generators and special equipment. We take care of the design, configuring sites and assembly. Versions designed for mobile crushers are additionally equipped with the option of positioning the boom within the contour of the crusher for transportation time. They are usually connected to hydraulic and electrical systems of the crusher.


MANIPULATORS FOR STATIONARY CRUSHERS

Booms for stationary machinery constitute a series of seven models with horizontal range from 3 to 7,5 m. For stationary applications, we offer high class powering modules. Such unit is equipped with an electric motor, hydraulic pump and tank with built-in filters. For our machines, we offer both manual and remote steering systems. Standard equipment features manual steering with proportional valves often mounted on manipulator’s base. Optionally, we offer remote steering with radio or wired controller. Both solutions are durable, lightweight and easy to use. Remote control works also with manual steering by switching the lever on the steering board.


MANIPULATORS FOR MOBILE CRUSHERS

YZH manipulators are constructions designed for mobile machines. Compact size allows mounting the manipulator so as to enable the crusher to meet road transport requirements. Construction of mobile booms allows mounting them on any type of mobile crusher. The main virtue of manipulators is their ability to be directly connected to crusher’s hydraulic system.

pedestal rockbreaker boom systempedestal boom breakerspedestal boom systemsHydraulic ManipulatorHydraulic ManipulatorsCHINA HYDRAULIC MANIPULATORS
