BC450
YZH

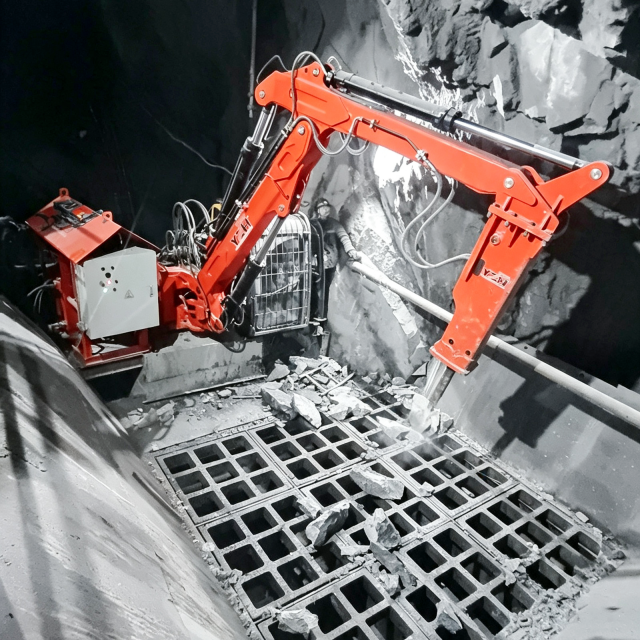

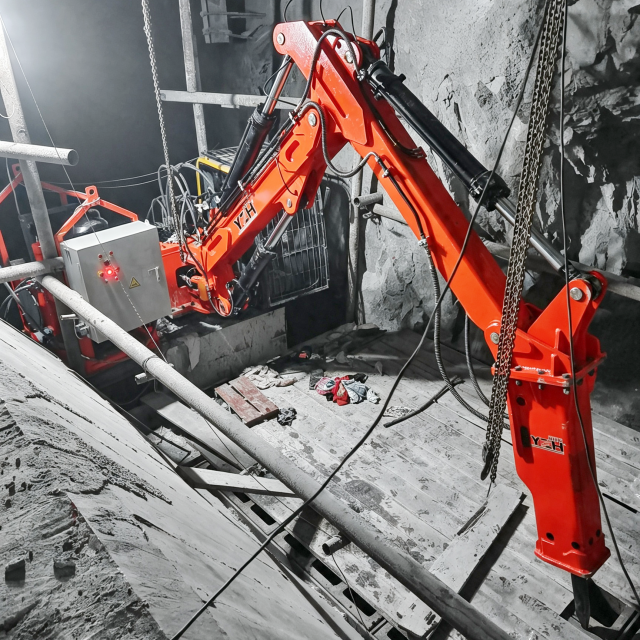

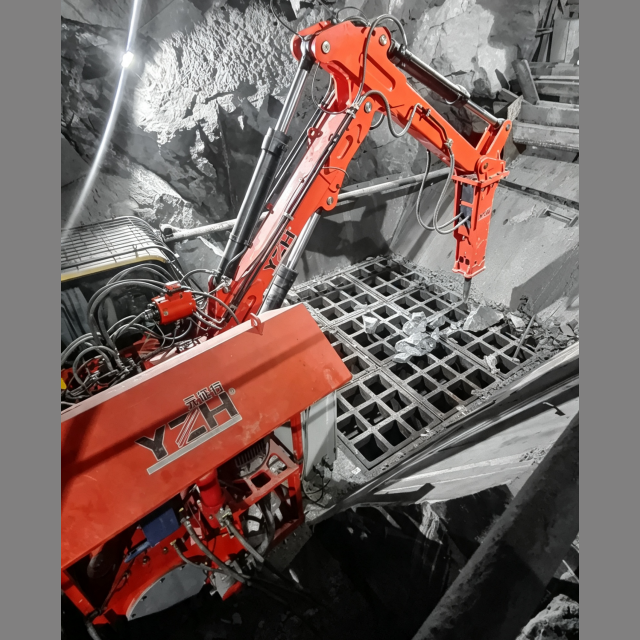

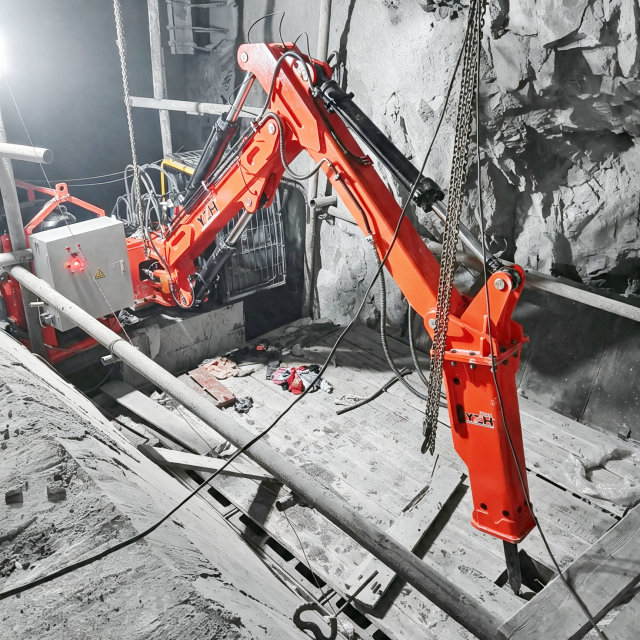

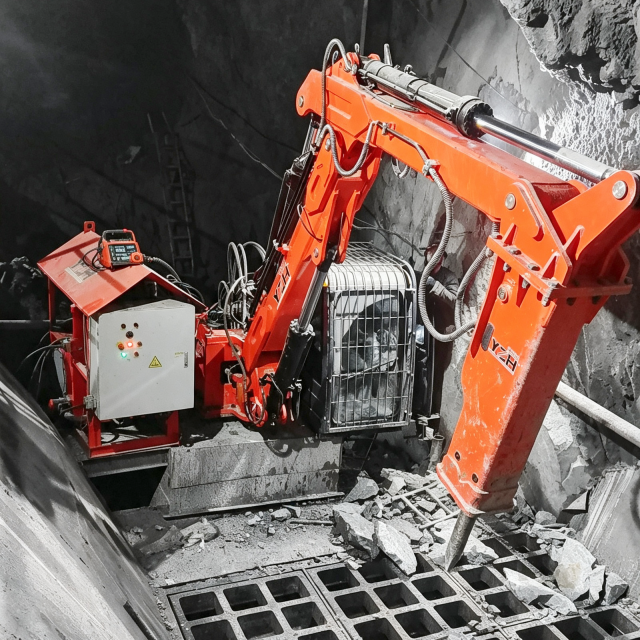

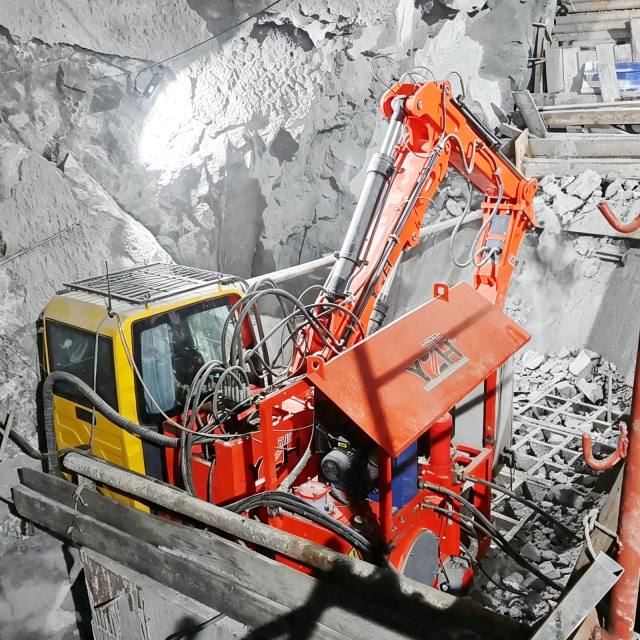

A stationary pedestal rockbreaker boom is a fixed‑mounted hydraulic breaking system installed above or beside crusher feed openings, hoppers, grizzlies, chutes and material bins. It is designed to handle oversize rocks, clear blockages and reduce unplanned downtime in mines, quarries and aggregate processing plants.
With a robust pedestal base, multi‑degree‑of‑freedom boom movement and compatible hydraulic breaker hammer, the system delivers controlled, efficient breaking performance while improving on‑site safety and reducing manual intervention in high‑risk areas.
Main parameters
Model No. | BC450 | |
Boom Weight (without hammer) | kg | 6789 |
Max. Horizontal working radius | mm | 7400 |
Max. Vertical working radius | mm | 5300 |
Min. Vertical working radius | mm | 2510 |
Max. Height | mm | 4743 |
Max. Working Depth | mm | 4457 |
Rotation | ° | 170 |
Hydraulic hammer model | YZH1350/YZH1400 | |
Power of Hydraulic Power Unit | kw | 55/75 |
Main benefits
The stationary pedestal rockbreaker boom is mounted on a reinforced concrete foundation or steel base structure, providing high stability during continuous breaking operations. This fixed installation helps maintain consistent impact force and reduces vibration transfer to surrounding equipment.
One of the main purposes of this system is to break oversize rocks that cannot enter the crusher smoothly. By reducing large boulders into smaller, manageable material, the system helps improve crusher feed efficiency and prevents blockages that can stop production.
The system can be equipped with wireless remote control, allowing operators to complete breaking tasks from a safer distance. This reduces the need for workers to stay close to the crusher feed area, where falling rock, dust and equipment movement may create safety risks.
Built with heavy‑duty steel plates, reinforced boom sections and high‑quality hydraulic components, the stationary pedestal rockbreaker boom is designed for long‑term operation in mining, quarry and aggregate plant environments. It can handle frequent impact loads, dust, vibration and temperature variations.
Different crushing stations have different installation spaces, material hardness, blockage points and production requirements. Therefore, the stationary pedestal rockbreaker boom can be customized according to actual site conditions.
Application Scenarios
Suitable for primary crushing stations where large rock blocks frequently enter the feed opening.
Ideal for quarry crushing plants that require continuous and reliable oversize rock breaking.
Helps maintain smooth material flow in hoppers, chutes and crushing circuits.
Used for limestone and hard material handling near crusher feed openings.
Suitable for bulk material blockage clearing and heavy‑duty feeding systems.
If you are looking for a reliable stationary pedestal rockbreaker boom for your crushing station, we can provide technical consultation, layout design, equipment selection and customized solutions.
