BC690
YZH
Product Overview

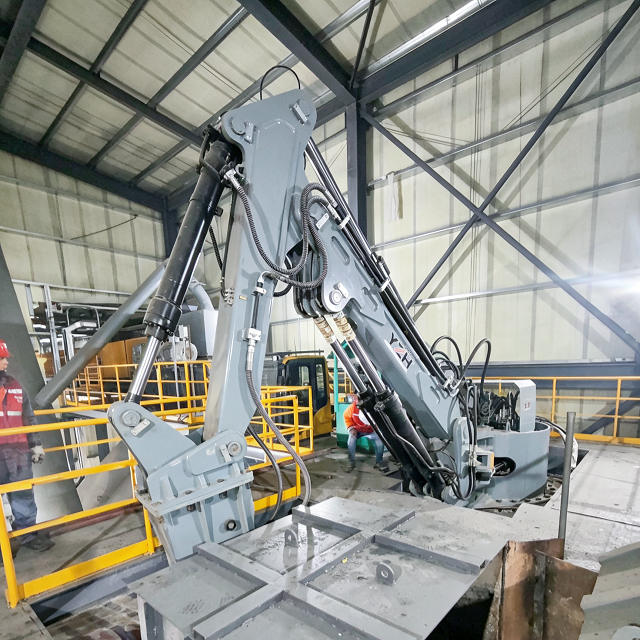

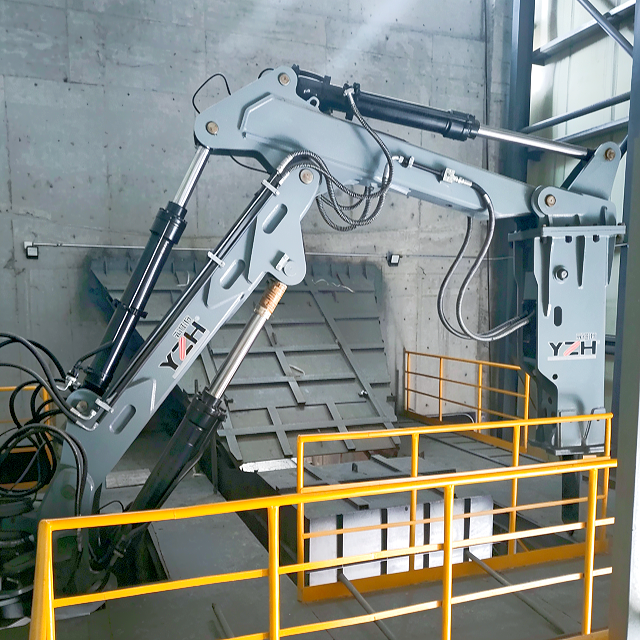

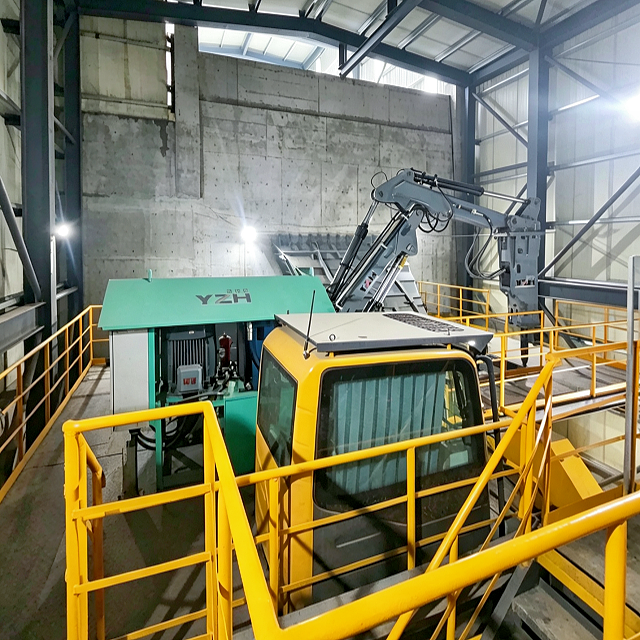

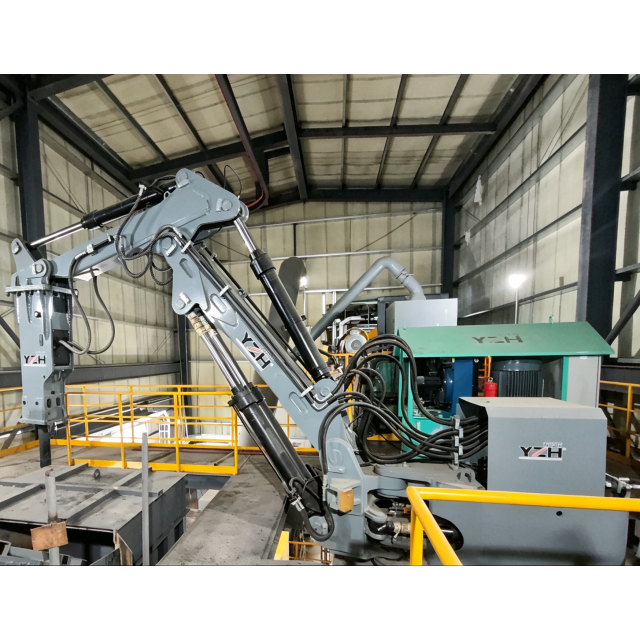

YZH stationary rockbreaker boom is a heavy-duty hydraulic breaking system engineered for fixed crushing operations. It is widely installed at mine hoppers, crusher feeding openings, material yards and bulk handling stations to eliminate blockages and break oversized rock boulders.
Constructed with high-strength welded steel, this rockbreaker boom features outstanding shock resistance and fatigue resistance, stable hydraulic power output and precise positioning performance. It can withstand harsh working conditions of heavy load, high dust and continuous impact, effectively improving site productivity and reducing material clogging risks.
Customizable color is available to match your factory or project visual requirements.
Main parameters
Model No. | BC690 | |
Boom Weight (without hammer) | kg | 7557 |
Max. Horizontal working radius | mm | 9860 |
Max. Vertical working radius | mm | 7571 |
Min. Vertical working radius | mm | 2915 |
Max. Height | mm | 6112 |
Max. Working Depth | mm | 7131 |
Rotation | ° | 170 |
Pedestal Size | mm | Φ1680 |
Hydraulic hammer model | YZH1350/YZH1400 | |
Power of Hydraulic Power Unit | kw | 55/75 |
Key Features
✅ Heavy-duty welded steel structure for long service life
✅ Stable hydraulic breaking power, accurate positioning
✅ Excellent impact & fatigue resistance, adapt to severe working environment
✅ Remote control optional for safe operation away from flying stones
✅ Customizable color upon request
✅ Complete set solution, supporting OEM & ODM customization
Application
Mines, quarries, cement plants, aggregate processing, bulk material handling, crusher feed bin blockage removal
Technical Note
We provide full set solutions including boom, hydraulic breaker, power station and control system. Custom configurations are acceptable for different working conditions.
