China Pedestal Breaker Boom

China Pedestal Breaker Boom is composed of pedestal booms, hydraulic hammer, hydraulic power unit and operating control.
  • BB600

  • YZH

China Pedestal Breaker Boom

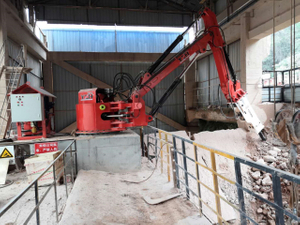

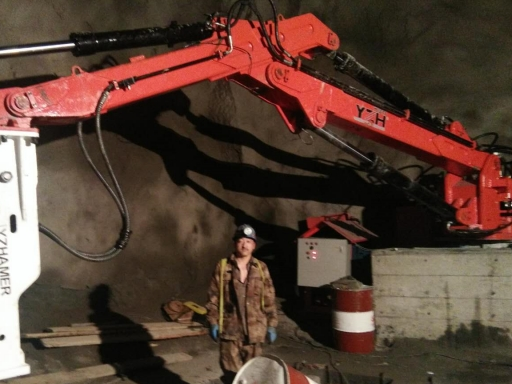

YZH pedestal breaker boom is a stationary system that is designed to manipulate large rocks.

This stationary system is typically used in the mining, quarrying, aggregate, cement, metallurgical and foundry industries.

The electric motor drive decreases the cost of fuel consumption, and the remote control makes it more convenient.

It has insured the safety of staffs, reduced the downtime and increased the productivity.

Model No. BB600
Max. Horizontal working radius(R1) 8430mm
Max. Vertical working radius(R2) 6330mm
Min. Vertical working radius(R3) 2300mm
Max. working depth(H2) 5810mm
Rotation 170°

boom systemboom systemboom system

YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
