| Quantity: | |
|---|---|
BA300
YZH

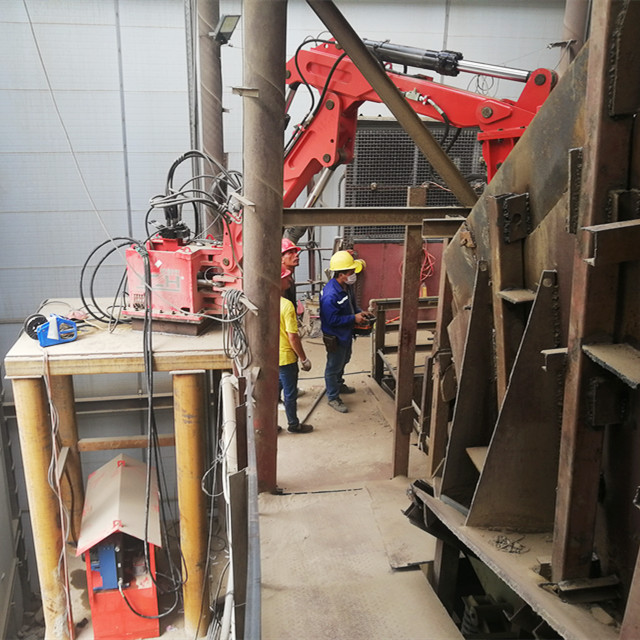

YZH Pedestal Hydraulic Rockbreaker Boom
BA300 Pedestal Hydraulic Rockbreaker Boom is a special hydraulic crushing equipment designed for mining, metallurgy, building materials and other industries, which is mainly used to solve the problems of crusher inlet blockage and secondary crushing of large ores, etc. Its core function is to replace manual high-risk clearing operation by hydraulic crushing hammer. Its core function is to accurately crush the large materials jammed in the grizzly screen, chute opening or crusher opening by hydraulic crushing hammer, replacing the manual high-risk blockage clearing operation, and enhancing the continuity and safety of production.
Main parameters of BA300 Pedestal Hydraulic Rockbreaker Boom:
Model No. | BA300 | |
Boom weight(without hammer) | kg | 1411 |
Max horizontal working radius | mm | 4880 |
Max.vertical working radius | mm | 3270 |
Min.vertical working radius | mm | 1570 |
Max.Height | mm | 2710 |

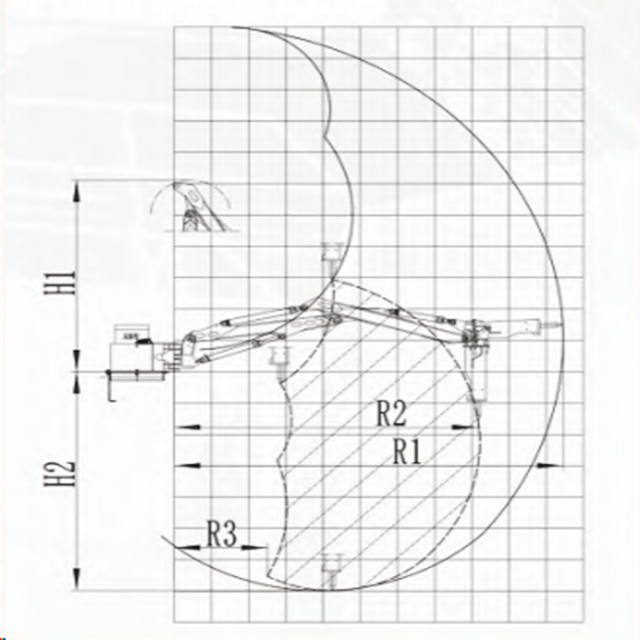

The Scope of Work Diagram of BA300 Pedestal Hydraulic Rockbreaker Boom：
The Features of BA300 Pedestal Hydraulic Rockbreaker Boom:
1. Intelligent control system
Remote control: supports 10-20km ultra-long-distance remote control, equipped with video monitoring system, the operator can work in the safe area.
Flexible control: realizes the fixed-point positioning strike of the crushing hammer with high precision and reduces ineffective impact.
Multi-parameter fusion control: integrated high-performance controller, real-time adjustment of crushing force and frequency, adapting to different hardness materials.
2. High-efficiency crushing capacity

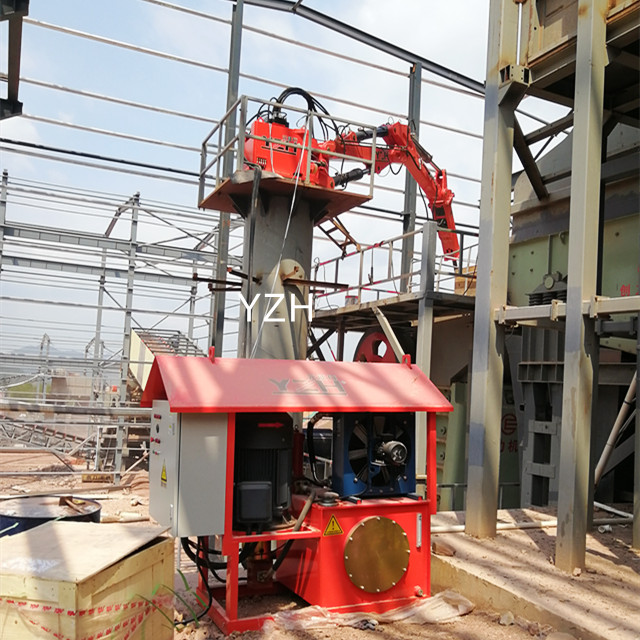

Hydraulic power optimization: 30-75kW hydraulic station (BA300 standard power 18/22/30kW) is used to drive the high-performance crushing hammer, and the impact energy is significantly higher than that of traditional equipment.
Low failure rate: high system integration, failure rate is 85% lower than diesel equipment, supporting year-round operation.
3. Strong environmental adaptability
Modular design: supports quick change of implements (such as different rod diameter of crushing hammers), adapting to a variety of materials such as ore, slag, cement blocks, and so on.
Extreme working condition tolerance: it can operate stably in high corrosion, explosion-proof requirements, high-altitude mines and other environments, and the protection level reaches IP54 or above.
4. Structural Reliability and Safety
Shock Absorption System: Equipped with high-performance shock absorbing device, it reduces the damage of impact load on the equipment's basic structure and prolongs the service life.
International core components: key hydraulic components and controllers adopt international brands to ensure durability.
The Benefits of BA300 Pedestal Hydraulic Rockbreaker Boom：
Energy saving and environmental protection, all electric power drive, zero emission; energy consumption is reduced by 50%-60% compared with diesel equipment, and noise pollution is reduced.
Significant economic benefits, the cost of using only 1/6 of the excavator's fuel consumption; maintenance costs are 40% lower, and the spare parts replacement cycle is longer.
Improvement of production efficiency, reduce the downtime of clearing the blockage, increase the capacity of the crushing line by 20%; support for remote control, to realize the “man-machine separation” safety production. Safety risk control, completely replacing manual access to high-risk areas (such as high-temperature slag area, mine shaft entrance), to eliminate safety accidents.
The Application of BA300 Pedestal Hydraulic Rockbreaker Boom：
1. Mines and Quarries
Clogging: Solve the problem of material jamming in the jaw and gyratory crusher discharge ports to avoid production line shutdowns (case in point: the sand and gravel aggregate plant reduces the time for clearing clogging by 90% through the installation of BA300).
Secondary crushing: crushing over-sized ore (>1m³) after blasting to a size that can be broken into, replacing the secondary operation of blasting.
2. Metallurgy and Foundry industry High-temperature slag crushing
remote control crushing of high-temperature steel slag, iron slag, to avoid the risk of manually approaching the molten material.
Scrap pre-processing: crushing large steel scrap to improve the efficiency of furnace feeding.
3. Underground Mining

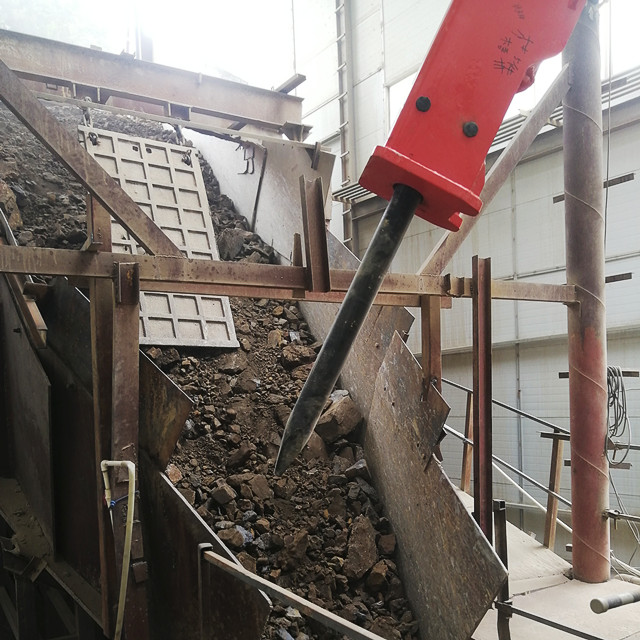

Slideway Grizzly Screen Clearing: Remotely clearing clogged ore from the grizzly screen in the restricted space to improve the underground transportation efficiency.
YZH BA300 Pedestal Hydraulic Rockbreaker Boom use modular design supports in-depth customization to meet the diversified needs from small and medium-sized quarries to large-scale metallurgical enterprises, and at the same time greatly improves the level of operational safety through the “machine for man” strategy. For enterprises pursuing double upgrading of production efficiency and safety, this equipment has a clear return on investment value.
