YZH Electric-powered Rockbreaker Boom System of Steel Structure

YZH rockbreaker boom system is designed to manage blockages and clear build ups in crusher cavity.
Availability:
Quantity:
  • BB350

  • YZH

YZH Electric-powered Rockbreaker  Boom System of Steel Structure

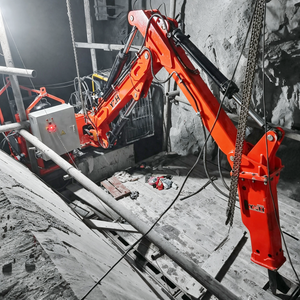

YZH rockbreaker boom system is mainly installed in the underground ore discharge hopper, grizzly screenings in open pit or underground quarries and other areas, used for large hard rocks, ore crushing, with high crushing force, operation and maintenance of simple and other characteristics.


The main components of yzh rockbreaker boom system include pedestal boom, hydraulic hammer, hydraulic pressure station and control system. It is suitable for extreme cold conditions down to -43°C, tropical conditions, high altitude, corrosion and explosive environments. The system is equipped with an air-cooled cooler to control the oil temperature of the system.


Specification:

Model No. Unit BB350
Max. horizontal working radius mm 6000
Max. vertical working radius mm 3950
Min. vertical working radius mm 1860
Max. working depth mm 4070
Rotation ° 170

pedestal boom systempedestal boomboom system

Previous:
Next:
YZH Also Offers Customized Service And Has The Ability To Design And Manufacture The Pedestal Booms According To Actual Working Conditions And Requirements To Meet All Specific Needs From The Customers.
